A25002-010

Headers, Receptacles, Female Sockets Overview

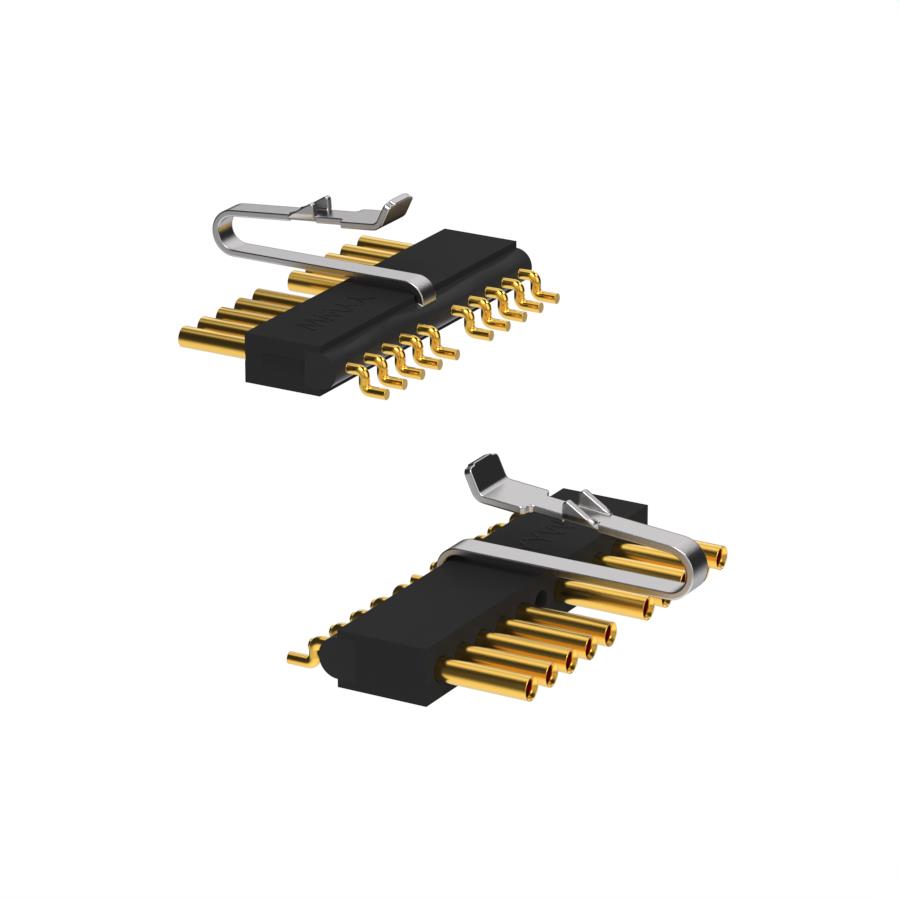

The Omnetics A25002-010 is a 10-position surface mount receptacle connector designed for high-density electronic assemblies. It features a 0.050-inch (1.27mm) pitch and utilizes gold-plated contacts to ensure reliable signal transmission in compact environments. The component is configured as a female socket with right-angle termination, facilitating efficient PCB layout routing while maintaining mechanical stability through surface mount technology.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle surface mount configuration for optimized board space utilization
• Gold-plated contact surfaces ensuring durable electrical connectivity
• Female socket design compatible with standard pin headers

Headers, Receptacles, Female Sockets Applications

• Compact consumer electronics assemblies
• Industrial control system interfaces
• Medical device internal connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count and termination style. Ensure compatibility with mating header components regarding pitch and housing dimensions. Confirm RoHS compliance status if required by project specifications before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle connection is required for 10-pin applications. The 1.27mm pitch suits dense layouts where vertical clearance is limited. Evaluate thermal management requirements during soldering processes to prevent damage to the surface mount pads and surrounding components.

Headers, Receptacles, Female Sockets Part Context

This part belongs to Omnetics' micro-miniature connector portfolio, known for precision engineering in demanding sectors. The series typically supports military-grade reliability standards. As a surface mount receptacle, it complements the company's extensive range of male pins and cable assemblies for complete interconnect solutions.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 10-position count, 1.27mm pitch, and right-angle SMT form factor. Verify that alternative manufacturers offer identical gold plating thickness and housing material properties to maintain environmental resilience and contact performance.
