A25002-012

Headers, Receptacles, Female Sockets Overview

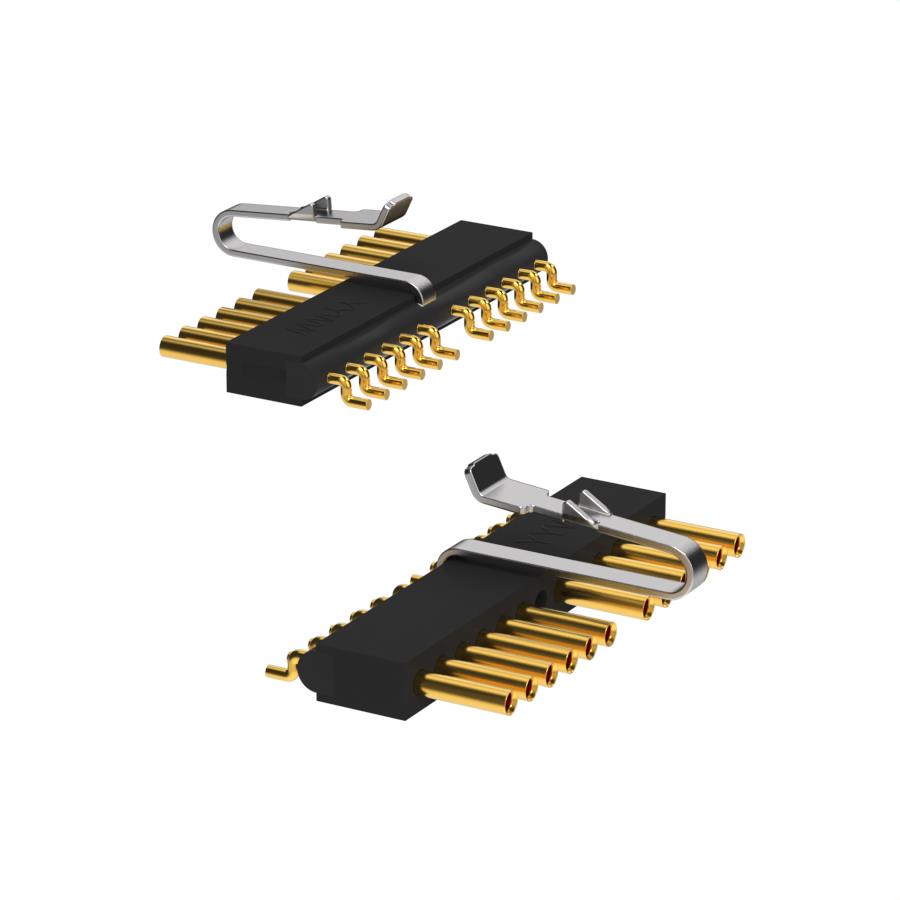

The Omnetics A25002-012 is a single-row Micro Strip receptacle connector featuring 12 female socket contacts with latch mechanisms. Designed for surface mount, right-angle installation, it utilizes a 0.050-inch (1.27mm) pitch. The connector employs gold-plated contacts with a 50.0µin thickness and PPS insulation rated for -55°C to 125°C. It supports 3A per contact current rating and includes tin-lead plated posts.

Headers, Receptacles, Female Sockets Feature Summary

• Single-row configuration with integrated latch mechanism for secure mating
• Right-angle surface mount design for compact PCB integration
• Gold-plated female socket contacts ensuring reliable signal transmission
• High-temperature resistant PPS insulation material construction

Headers, Receptacles, Female Sockets Applications

• High-density electronic interconnect systems
• Ruggedized military and aerospace applications
• Compact consumer electronics requiring right-angle mounting
• Automotive control modules with space constraints

Headers, Receptacles, Female Sockets Procurement Notes

Verify component authenticity through authorized Omnetics distributors or direct channels. Confirm RoHS compliance status as the part may not meet standard regulations. Validate specific suffix requirements against project specifications to ensure correct termination and packaging options are selected for manufacturing integration.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when right-angle surface mount connectivity is required for single-row applications. Ensure PCB layout accommodates the 0.050-inch pitch and right-angle profile. Verify mating compatibility with corresponding male plug connectors from the same Micro Strip series to maintain mechanical and electrical interface integrity.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Omnetics Micro Strip family, designed for miniature interconnect solutions. It complements male plug variants like the A24002-012 within the same series. The product line emphasizes high reliability in small form factors for demanding environments.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other single-row Micro Strip receptacles with matching 12-position counts and right-angle surface mount configurations. Verify identical pitch dimensions and latch mechanisms before substitution.
