A25002-014

Headers, Receptacles, Female Sockets Overview

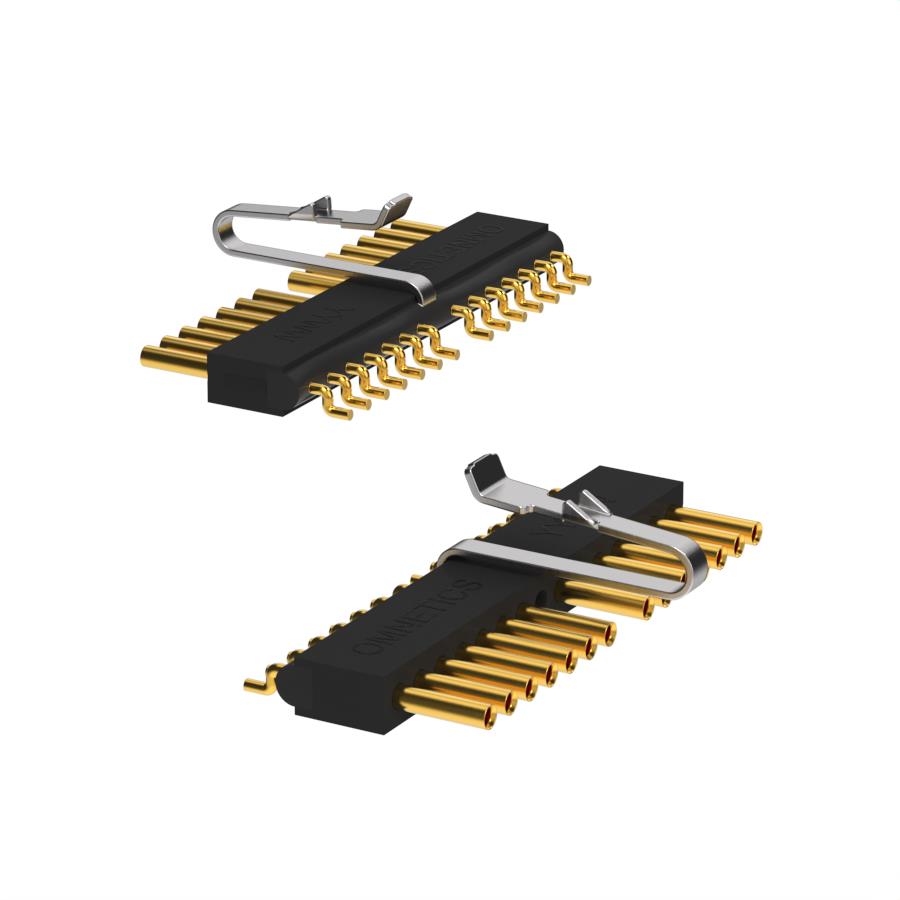

The Omnetics A25002-014 is a Micro Strip series rectangular connector receptacle featuring 14 positions with a 0.050-inch (1.27mm) contact spacing. It utilizes female socket contacts with gold plating and a polyphenylene sulfide (PPS) insulation material. The component supports a current rating of 3A per contact and a voltage rating of 600VAC, designed for reliable signal interconnection in compact electronic systems.

Headers, Receptacles, Female Sockets Feature Summary

• Micro Strip series design for highly portable electronic applications
• Polyphenylene sulfide (PPS) insulation material for durability
• Gold-plated female socket contacts ensuring stable signal transmission

Headers, Receptacles, Female Sockets Applications

• Highly portable electronic systems requiring compact interconnects
• Signal interconnection in micro and nano connector environments
• Industrial control modules needing reliable rectangular connectors

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific manufacturer part number against official Omnetics documentation to confirm availability status, as this item may be discontinued or subject to supply chain variations. Ensure compatibility with mating connectors within the same Micro Strip series family before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 14-position female socket connector is required with 0.050-inch spacing. Confirm that the 3A per contact current rating and 600VAC voltage rating meet the system electrical requirements. Verify physical dimensions and mounting style against the official datasheet specifications.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Omnetics Micro Strip series, which provides high-density interconnect solutions. The series is engineered for mission-critical performance in space-constrained applications, offering robust mechanical stability and consistent electrical characteristics across various environmental conditions.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Omnetics resources for direct substitutes if this part is no longer manufactured. Alternative components must match the 14-position count, 0.050-inch pitch, and female socket configuration to ensure functional interchangeability.
