A25002-016

Headers, Receptacles, Female Sockets Overview

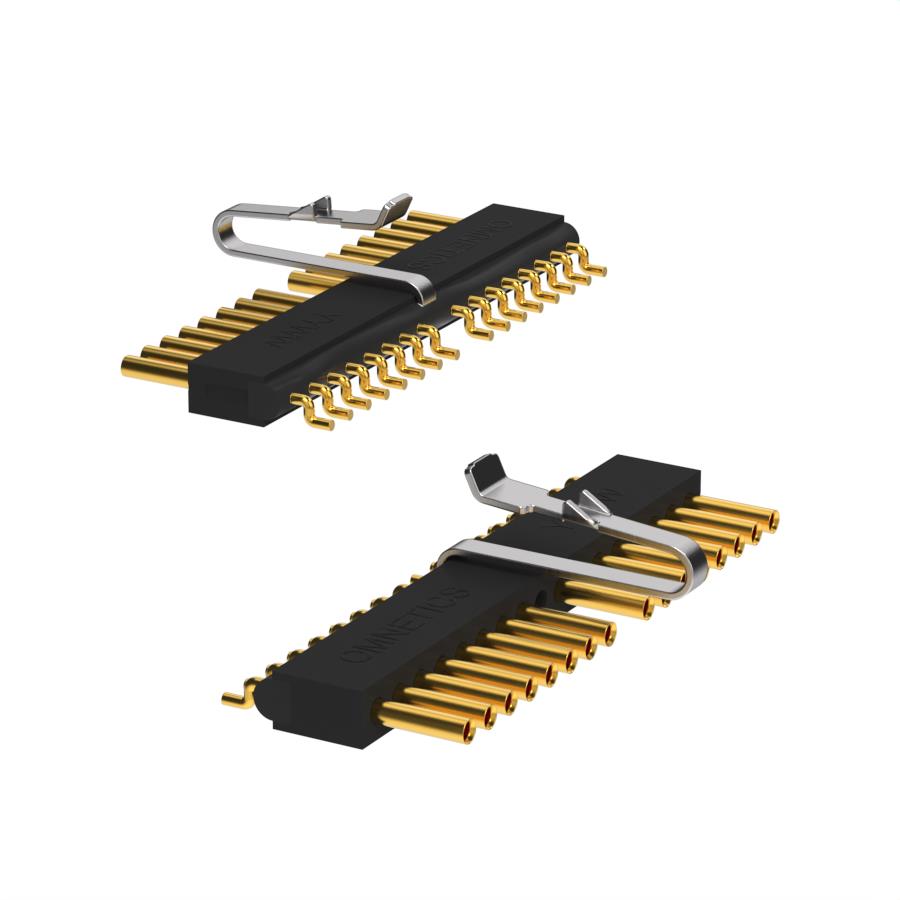

The Omnetics A25002-016 is a Micro Strip receptacle connector featuring 16 positions in a dual-row configuration. Designed for surface mount, right-angle installation, it utilizes a 0.050" (1.27mm) pitch with a 0.100" (2.54mm) row spacing. The connector employs female sockets with gold-plated contacts and operates within a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Micro Strip series construction with push-pull latching mechanism
• Gold-plated contact surfaces ensuring low contact resistance
• Polyphenylene sulfide insulation material for thermal stability
• Right-angle surface mount termination for compact board integration

Headers, Receptacles, Female Sockets Applications

• Spacecraft and satellite electronic systems
• Radar communication equipment
• Medical devices including cochlear implants and portable MRI
• Avionics and missile guidance systems
• Portable navigation and remote communication units

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the manufacturer datasheet to confirm exact pin count, termination style, and plating specifications. Ensure compatibility with mating plug components from the same Micro Strip family. Confirm RoHS compliance status and moisture sensitivity level requirements prior to assembly integration.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for high-density signal routing requiring robust mechanical retention in vibration-prone environments. The right-angle surface mount design optimizes vertical space utilization. Evaluate thermal management needs against the specified operating range and ensure adequate PCB copper area for reliable solder joint formation during reflow processes.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Omnetics Micro Strip series, designed for extreme reliability in harsh conditions. It adheres to MIL-DTL-83513 standards, utilizing beryllium copper flex pins for superior durability. The series supports various configurations including single and double rows with different termination options for diverse application requirements.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating plugs include A24201-016 and A24204-016. Verify dimensional tolerances and electrical ratings before substituting with alternative manufacturers' connectors to ensure mechanical fit and performance integrity.
