A25002-018

Headers, Receptacles, Female Sockets Overview

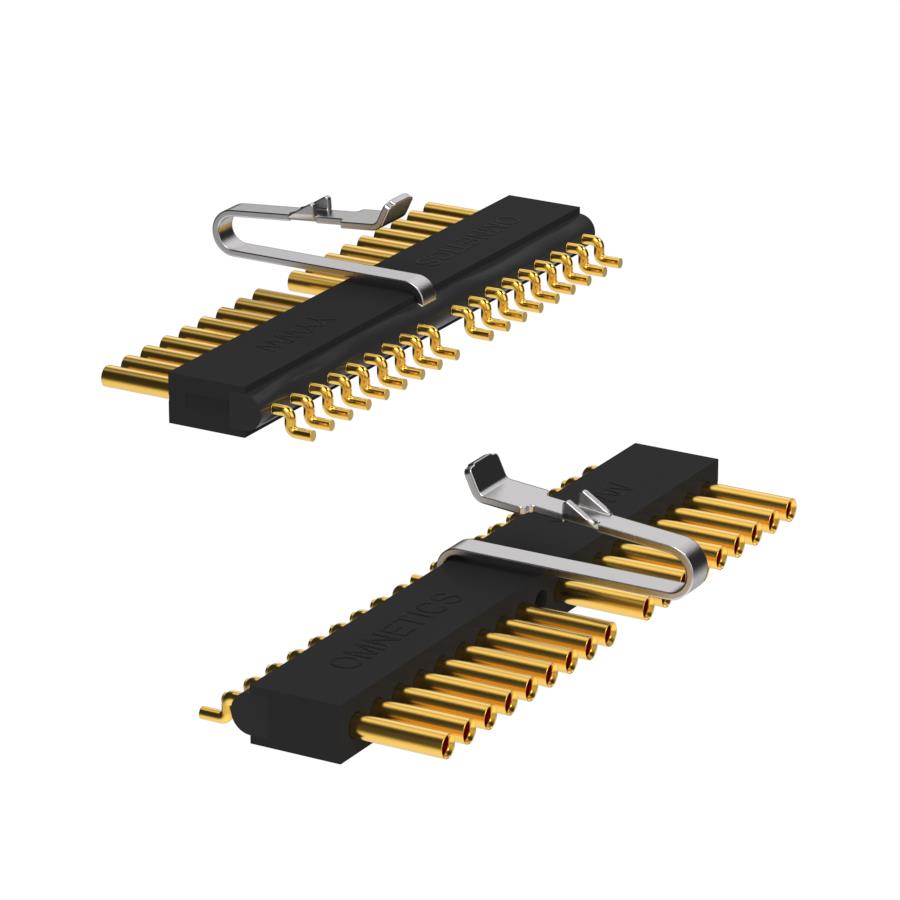

The Omnetics A25002-018 is an 18-position female socket receptacle connector from the Micro Strip series. It features a 0.050-inch (1.27mm) pitch and utilizes surface mount right-angle termination for PCB integration. The contacts are gold-plated to ensure reliable signal transmission in high-density electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount right-angle design for compact board integration
• Gold-plated contacts for enhanced conductivity and corrosion resistance
• Micro Strip series construction for miniature form factor

Headers, Receptacles, Female Sockets Applications

• High-density electronic circuit boards
• Miniature communication devices
• Compact sensor interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix requirements against the official Omnetics datasheet to ensure correct pin configuration and termination style. Confirm RoHS compliance status as specifications may vary by production batch. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity and current availability before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a right-angle, surface-mount female socket is required for space-constrained applications. Ensure the PCB footprint matches the 0.050-inch pitch specification. Consider the mechanical stability of the right-angle orientation during assembly and verify that the contact plating meets the environmental requirements of the target application.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Omnetics Micro Strip family, which specializes in micro-miniature connectors. The series is designed for applications demanding high reliability and small form factors. The A25002-018 specifically addresses needs for right-angle interconnects within this miniature connector ecosystem.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the official Omnetics replacement guide for direct substitutes. Verify compatibility with existing mating connectors and PCB layouts before switching to alternative part numbers.
