A25002-020

Headers, Receptacles, Female Sockets Overview

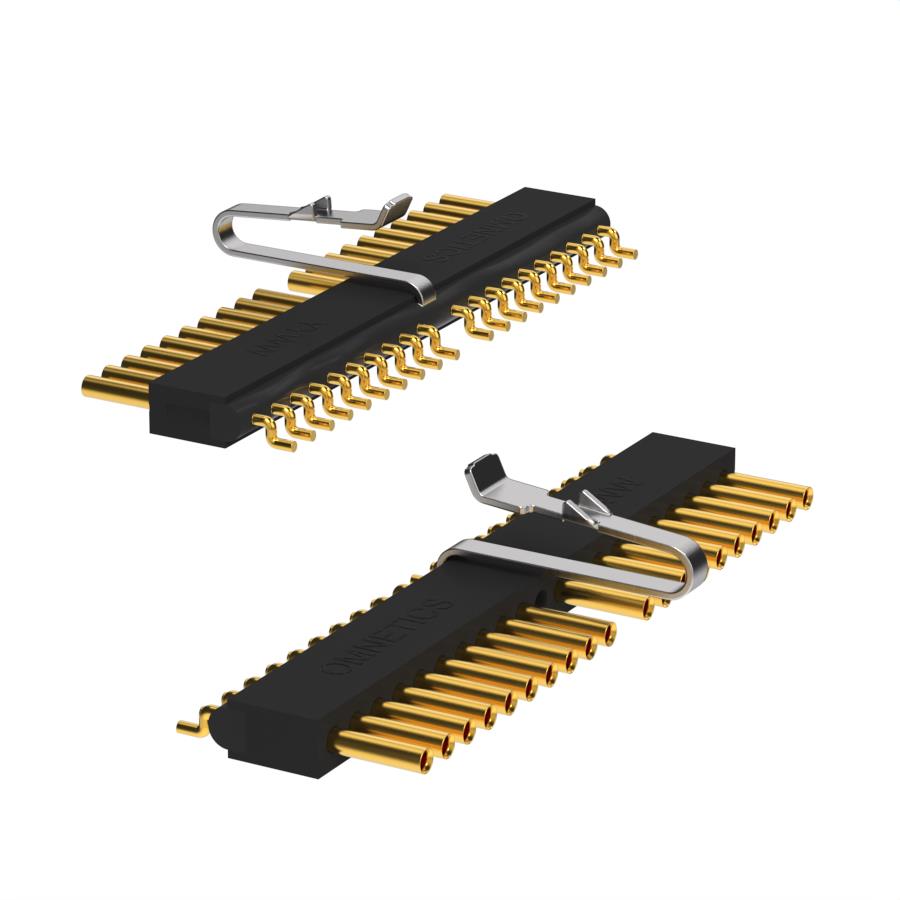

The Omnetics A25002-020 is a Micro Strip series receptacle connector featuring 20 positions with a 0.050-inch (1.27mm) pitch. Designed for surface mount, right-angle installation, it utilizes female socket contacts made of copper alloy with gold plating. The component supports a voltage rating of 600 volts and a current rating of 3.0 amps per contact. It employs a push-pull locking mechanism and operates within a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Micro Strip series design for miniature applications
• Surface mount right-angle termination style
• Push-pull locking mechanism for secure connection

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnects
• High-density electronic assemblies
• Miniature connector systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Omnetics documentation to confirm pin count, pitch, and mounting orientation. Ensure compatibility with mating headers and PCB layout requirements. Check for RoHS compliance status and moisture sensitivity level if required by manufacturing processes.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring high-density connections in limited space. The right-angle surface mount design facilitates compact board layouts. Verify that the 3.0 amp current rating and 600 volt rating meet system electrical requirements. Confirm mechanical fit with mating connectors.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the Omnetics Micro Strip family, known for miniature rectangular connectors. It serves as a counterpart to matching header components in the same series. The design emphasizes reliability and miniaturization for demanding electronic environments.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Omnetics substitution guides for verified alternatives. Generic equivalents may not match the precise mechanical dimensions or electrical ratings. Verify pinout compatibility before considering any substitute parts.
