A25201-012

Headers, Receptacles, Female Sockets Overview

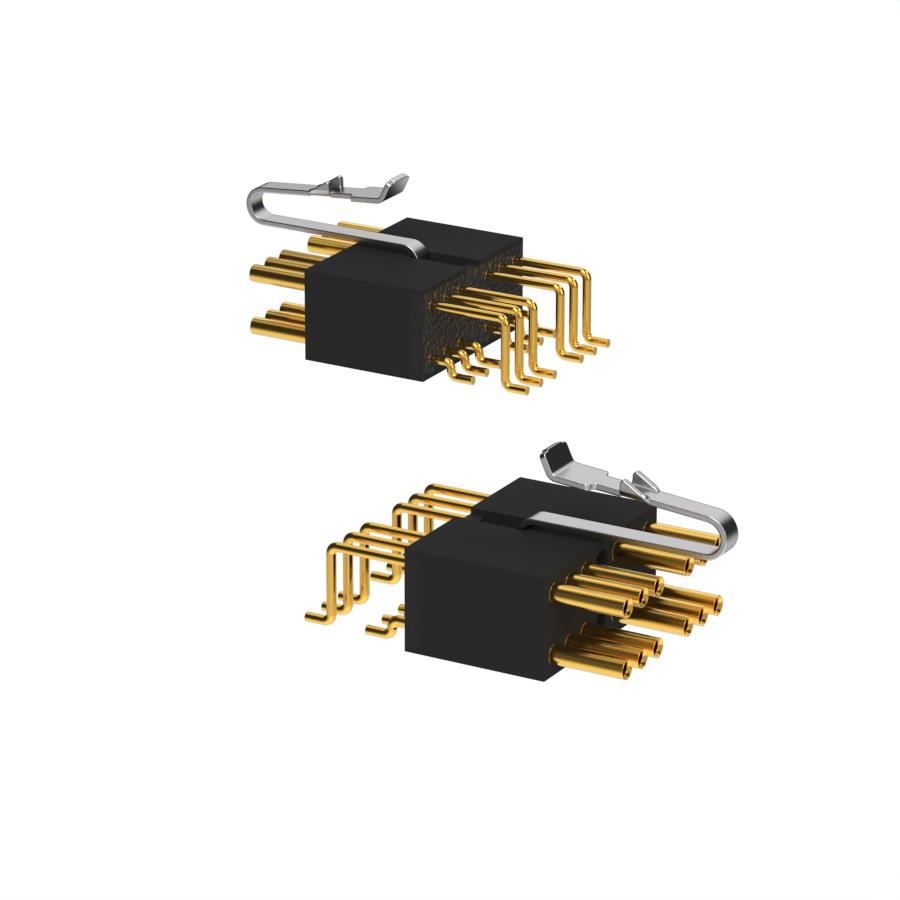

The A25201-012 is a 12-position receptacle connector from the Micro Strip series by Omnetics. It features female sockets with a 0.050 inch (1.27mm) mating pitch and a 0.100 inch (2.54mm) row spacing. Designed for surface mount, right-angle installation, the connector utilizes gold-plated contacts to ensure reliable signal transmission. The unit operates within a temperature range of -55°C to 125°C and employs a push-pull locking mechanism for secure connection.

Headers, Receptacles, Female Sockets Feature Summary

• Micro Strip series design optimized for high-density board-to-board interconnects
• Surface mount right-angle termination facilitates compact PCB layout integration
• Gold-plated female socket contacts provide corrosion resistance and stable conductivity
• Push-pull locking system ensures secure mechanical engagement during operation

Headers, Receptacles, Female Sockets Applications

• High-density electronic assemblies requiring small form factor connectors
• Board-to-board connections in space-constrained industrial equipment
• Signal interconnects in aerospace and defense systems
• Medical device internal circuitry requiring reliable micro-connectors

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required pin count and orientation. Confirm surface mount compatibility with the target PCB footprint. Ensure environmental ratings meet operational requirements. Check for correct contact plating specifications. Validate packaging type against assembly line needs.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 12-position right-angle receptacle is required. Consider the 0.050 inch pitch for density needs. Evaluate the push-pull latch for mating force requirements. Assess thermal performance limits for the application environment. Compare against alternative series for size constraints.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Micro Strip family, known for precision engineering in miniaturized interconnect solutions. Omnetics specializes in high-reliability connectors for demanding sectors. The A25201-012 represents a standard configuration within this specialized product line, focusing on robust performance in limited spaces.

Headers, Receptacles, Female Sockets Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify exact dimensional and electrical compatibility before considering any alternative components from other manufacturers.
