A25202-020

Headers, Receptacles, Female Sockets Overview

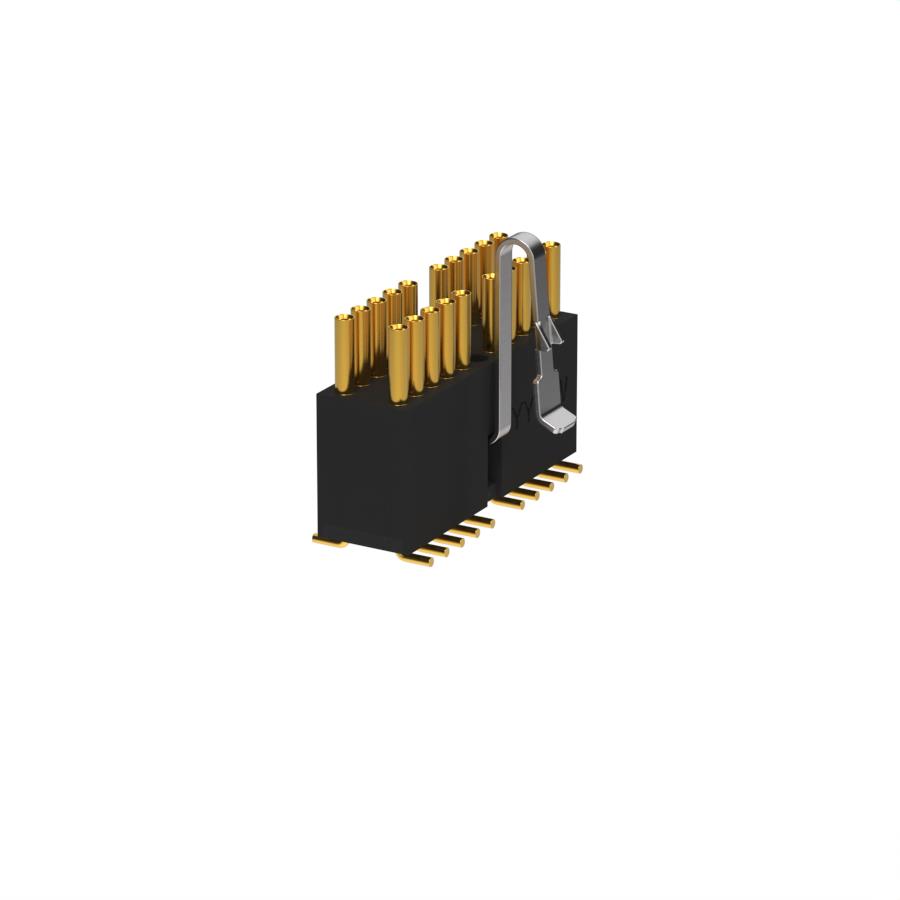

The Omnetics A25202-020 is a Micro Strip series rectangular connector receptacle featuring 20 positions in a dual-row configuration. It utilizes a 0.050-inch (1.27mm) pitch and is designed for vertical surface mount installation. The connector employs female socket contacts with gold plating and incorporates a push-pull latch mechanism for secure mating.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row female socket receptacle design
• Vertical surface mount termination style
• Integrated push-pull locking latch system

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Automotive control modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix to confirm pin count, row configuration, and termination orientation. Ensure compatibility with the corresponding male header from the same Micro Strip family. Confirm RoHS compliance status if required by project specifications before finalizing procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring high-density connections with reliable mechanical retention. The surface mount profile suits automated assembly processes. Verify that the mating header matches the 0.050-inch pitch and dual-row layout to ensure proper alignment and electrical continuity.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Omnetics Micro Strip family of connectors. It is designed as a complementary receptacle to mate with matching male headers. The series emphasizes compact form factors suitable for space-constrained modern electronic designs.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes are limited due to proprietary latch mechanisms. Compatible alternatives must match the 0.050-inch pitch, dual-row layout, and surface mount footprint. Verify mechanical dimensions and latch engagement force before substitution.
