A25202-024

Headers, Receptacles, Female Sockets Overview

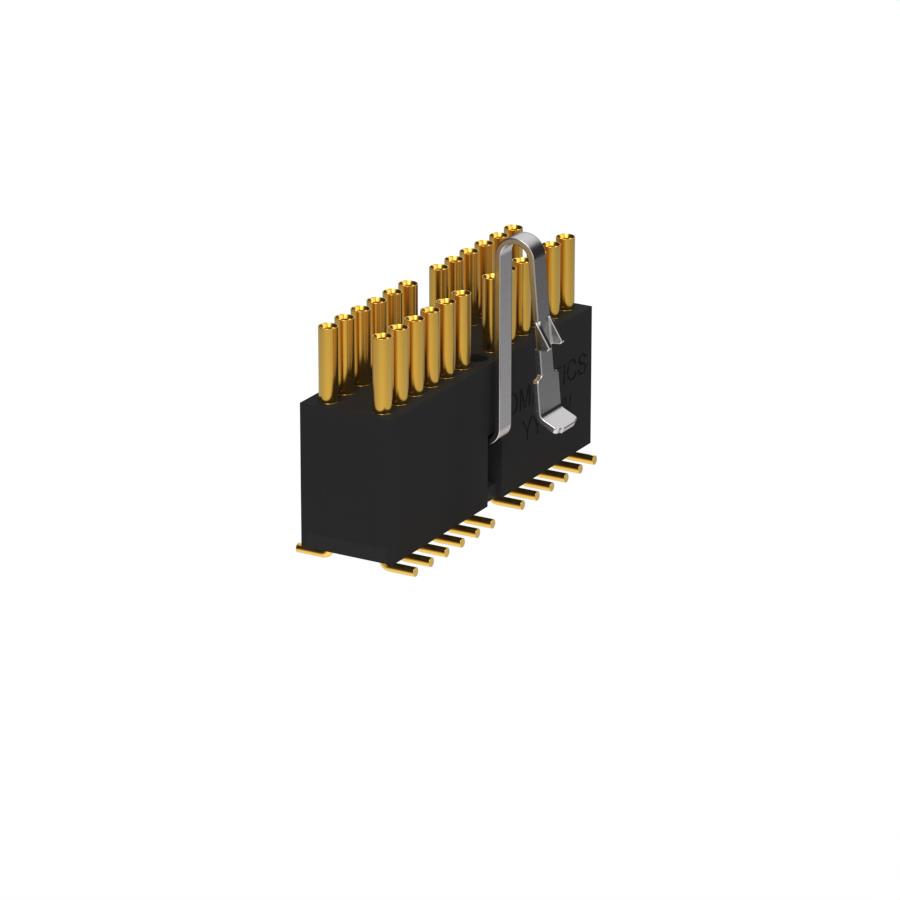

The Omnetics A25202-024 is a Micro Strip series receptacle connector designed for surface mount applications. It features 24 positions with female sockets and a 0.050-inch (1.27mm) mating pitch. The connector utilizes a push-pull fastening mechanism and gold-plated contacts to ensure reliable signal transmission. Constructed with PPS insulation, it supports a wide operating temperature range from -55°C to 125°C. Rated at 3A per contact, this component is suitable for high-density board-to-board interconnections requiring robust mechanical stability and consistent electrical performance in demanding environments.

Headers, Receptacles, Female Sockets Feature Summary

• Push-pull latching mechanism provides secure connection retention
• Gold-plated contacts ensure reliable signal integrity
• Surface mount design facilitates automated assembly processes

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections
• High-density electronic assemblies
• Automotive electronics systems
• Industrial control modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official Omnetics documentation to confirm exact plating thickness and material specifications. Ensure that the selected variant matches the required thermal resistance and current rating for the intended application environment. Cross-reference the manufacturer part number with authorized distributor catalogs to confirm availability and lead times prior to procurement planning.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile surface mount receptacle with a 0.050-inch pitch is required. Consider the 24-position configuration for space-constrained designs needing moderate I/O density. Evaluate the push-pull latching requirement against other securing methods like screws or clips. Confirm compatibility with mating header components within the same Micro Strip family to ensure proper alignment and engagement.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Omnetics Micro Strip series, which focuses on compact, high-reliability interconnect solutions. The series is engineered for applications where size and weight are critical constraints. Components in this line typically feature ruggedized contacts and durable insulating materials to withstand harsh operational conditions while maintaining precise electrical characteristics over their service life.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating headers include models such as A24202-024 from the same manufacturer series. Verify pin count and pitch dimensions before substitution. Ensure that alternative connectors maintain identical mounting footprint and latching mechanism requirements to preserve mechanical integrity.
