A25202-032

Headers, Receptacles, Female Sockets Overview

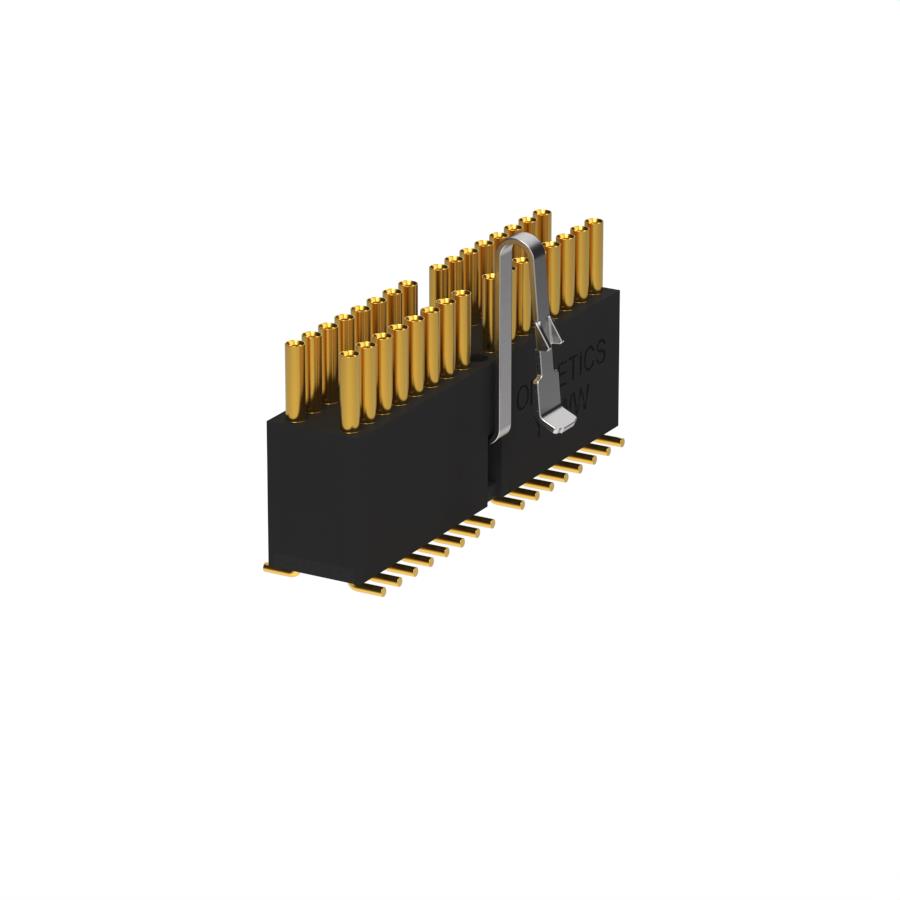

The Omnetics A25202-032 is a 32-position rectangular receptacle connector from the Micro Strip series. It features a 0.050-inch (1.27mm) mating pitch and a 0.100-inch (2.54mm) row spacing across two rows. Designed for surface mount installation, it utilizes push-pull locking mechanisms. The contacts are gold-plated with a thickness of 50.0µin (1.27µm), while the posts are tin-lead plated. Constructed with PPS insulation and copper alloy contacts, it supports a rated current of 3A per contact and operates within a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount receptacle design with push-pull locking mechanism
• Gold-plated female socket contacts for reliable signal transmission
• Dual-row configuration with precise 0.050-inch pitch spacing

Headers, Receptacles, Female Sockets Applications

• High-density board-to-board interconnections
• Compact electronic modules requiring surface mount technology
• Miniature connector systems in constrained spaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against official Omnetics documentation to ensure correct plating and termination specifications. Confirm that the selected variant matches the required surface mount orientation and pin count. Cross-reference the manufacturer part number with authorized distributors to validate authenticity and compliance with RoHS3 standards before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, high-density female socket is required for surface mount applications. Ensure the design accommodates the 0.100-inch row spacing and 0.050-inch pitch constraints. Verify compatibility with the mating male header's locking mechanism and electrical ratings, specifically the 3A per contact limit and operating temperature range.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Omnetics Micro Strip series, which specializes in micro-miniature connectors. The series is engineered for high-reliability applications in compact electronic environments. As a receptacle, it pairs with corresponding male headers to establish secure electrical connections in space-constrained designs.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other Omnetics Micro Strip receptacles with identical pin counts and pitch, such as A25202-036 or A25202-048, provided the physical footprint and row configuration match the design requirements.
