A25202-036

Headers, Receptacles, Female Sockets Overview

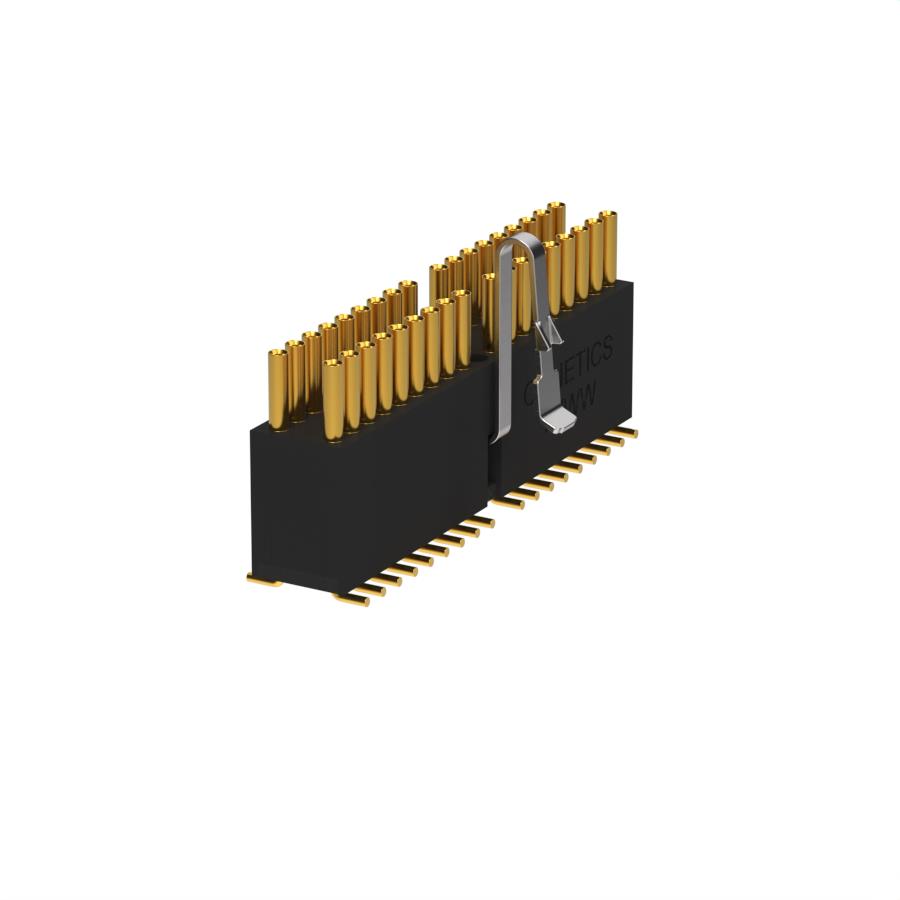

The Omnetics A25202-036 is a 36-position receptacle connector from the Micro Strip series, designed for board-to-board applications. It features a 0.050" (1.27mm) mating pitch and surface mount termination. The connector utilizes female sockets with circular contacts made of copper alloy, finished with 50.0µin (1.27µm) gold plating on the mating interface and tin-lead on the posts. Insulated with black polyphenylene sulfide (PPS), it supports a rated current of 3A per contact and operates within a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Push-pull latching mechanism ensures secure connection retention
• Surface mount design facilitates automated PCB assembly
• Gold-plated contacts provide reliable signal transmission in harsh environments

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections in compact electronic modules
• High-density signal routing in aerospace and defense systems
• Industrial control units requiring robust miniature connectors

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct pin configuration and termination style. Confirm that the selected variant matches the required surface mount footprint and thermal profile specifications for your manufacturing process. Cross-reference the part number with the latest datasheet to validate compliance with RoHS3 standards and moisture sensitivity level classifications before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-density, low-profile solution is required for board-to-board connections. The 0.050" pitch allows for significant I/O density in limited space. Ensure compatibility with the corresponding male header from the same series. Consider the push-pull latching feature if vibration resistance is critical. Verify that the operating temperature range meets the environmental demands of the final application.

Headers, Receptacles, Female Sockets Part Context

This receptacle belongs to the Micro Strip family, known for miniature form factors and high reliability. It pairs with matching headers to create complete interconnect solutions. The series is engineered for demanding sectors where size, weight, and performance are paramount. The specific model provides a standardized interface for consistent mating cycles and electrical stability across various industrial deployments.

Headers, Receptacles, Female Sockets Replacement Considerations

No public confirmed substitute part numbers are available for direct replacement.
