A25202-040

Headers, Receptacles, Female Sockets Overview

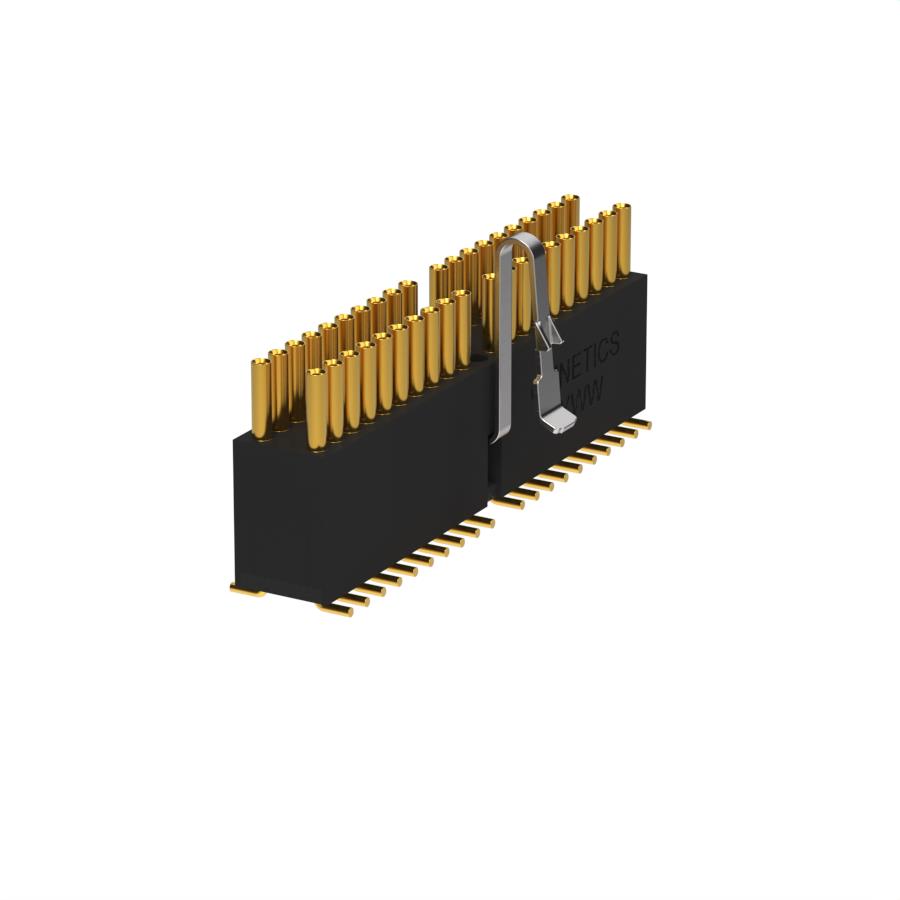

The Omnetics A25202-040 is a Micro Strip series receptacle connector featuring 40 positions with female sockets. It utilizes a 0.050" (1.27mm) pitch and is designed for surface mount termination. The connector employs a push-pull locking mechanism and features gold-plated contacts to ensure reliable signal transmission in board-to-board applications.

Headers, Receptacles, Female Sockets Feature Summary

• Micro Strip series design for high-density interconnects
• Push-pull locking mechanism for secure mating
• Gold-plated contacts for corrosion resistance

Headers, Receptacles, Female Sockets Applications

• Board-to-board connections
• High-reliability electronic assemblies
• Compact industrial equipment interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific part number against official Omnetics documentation to confirm pin count, pitch, and termination style. Ensure compatibility with mating headers and PCB layout requirements before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring high-density connections with secure locking. Consider surface mount capabilities and contact plating specifications when evaluating environmental durability and electrical performance needs.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Omnetics Micro Strip family, known for compact form factors and mission-critical reliability. It serves as a specialized interconnect solution within the broader portfolio of high-performance connectors engineered for demanding environments.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult official Omnetics substitution guides for verified alternatives. Generic equivalents may not match the precise mechanical tolerances or locking mechanisms required for proper function.
