A25202-044

Headers, Receptacles, Female Sockets Overview

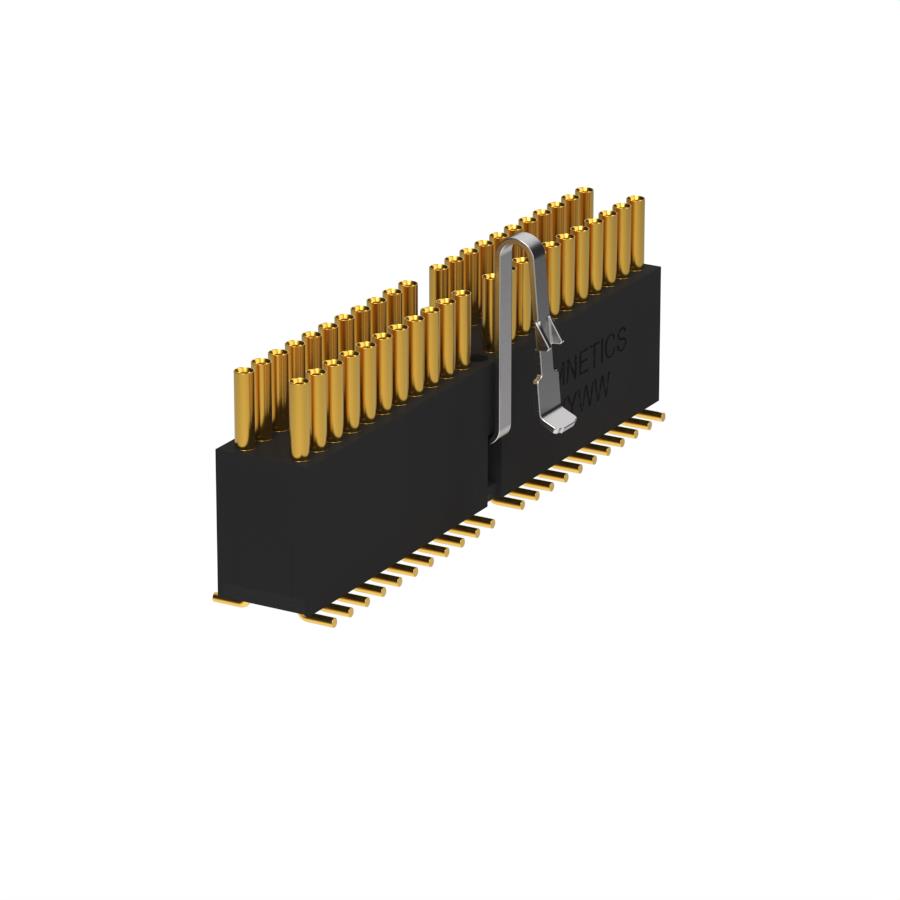

The Omnetics A25202-044 is a 44-position receptacle connector from the Micro Strip series. It features a 0.050" (1.27mm) pitch and surface mount installation. The contacts are female sockets with gold plating, rated for 3A per contact. Constructed with PPS insulation and copper alloy contacts, it operates within a -55°C to 125°C range.

Headers, Receptacles, Female Sockets Feature Summary

• Micro Strip series design for high-density interconnect applications
• Push-pull locking mechanism ensures secure mating retention
• Gold-plated contacts provide reliable signal transmission
• Surface mount termination facilitates automated PCB assembly

Headers, Receptacles, Female Sockets Applications

• High-reliability military avionics systems
• Precision medical device instrumentation
• Compact aerospace electronic assemblies
• Unmanned aerial vehicle control units

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required 44-position configuration and surface mount style. Confirm compatibility with the corresponding male header components within the same Micro Strip series to ensure proper pitch alignment and mechanical fit before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when space constraints require a dense 0.050-inch pitch interface. Ensure the application environment remains within the specified temperature range and that the push-pull locking requirement aligns with the system's mechanical retention needs. Validate that surface mount technology is suitable for the manufacturing process.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Micro Strip family, characterized by micro-miniature dimensions and high reliability. Omnetics designs these connectors for demanding environments, utilizing rugged materials and precision engineering to maintain performance in challenging conditions across various industrial sectors.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible counterparts include other 44-position Micro Strip receptacles such as A25202-036 or A25202-048, provided they share the identical 0.050-inch pitch and surface mount specifications to ensure direct interchangeability.
