A25202-048

Headers, Receptacles, Female Sockets Overview

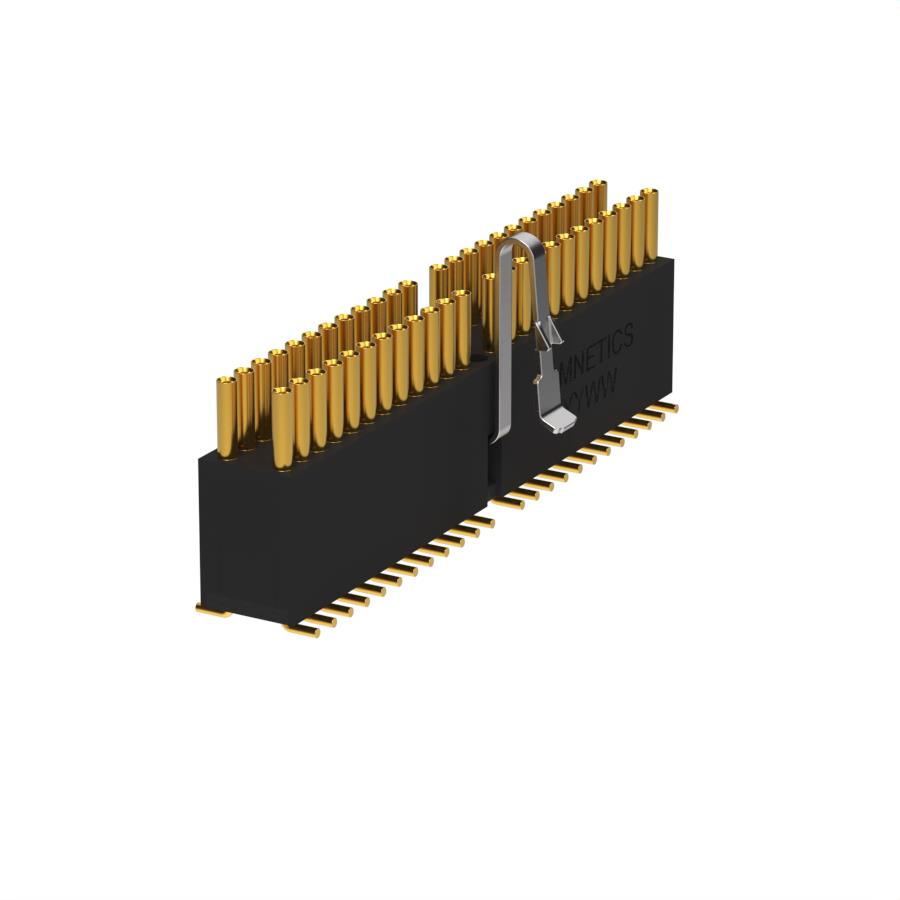

The Omnetics A25202-048 is a Micro Strip series receptacle connector featuring 48 positions with a 0.050 inch (1.27mm) contact spacing. Designed for surface mount installation, it utilizes female socket contacts with gold plating to ensure reliable signal transmission. The component operates within a temperature range of -55°C to 125°C and employs a push-pull locking mechanism for secure mating. Constructed with PPS insulation and copper alloy contacts, this connector supports discrete cable termination via soldering.

Headers, Receptacles, Female Sockets Feature Summary

• Surface mount receptacle design compatible with automated assembly processes
• Push-pull locking mechanism ensures secure connection retention
• Gold-plated female socket contacts provide corrosion resistance and low contact impedance

Headers, Receptacles, Female Sockets Applications

• High-density electronic interconnect systems requiring surface mount technology
• Industrial control modules utilizing rigid board-to-board connections
• Aviation or defense equipment demanding high-reliability micro-connectors

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix designation against official Omnetics documentation to confirm exact plating thickness and material specifications. Ensure compatibility with mating header components from the same Micro Strip family. Confirm that the surface mount footprint aligns with the target PCB layout requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a high-pin-count surface mount receptacle is required for space-constrained applications. The 0.050-inch pitch allows for dense circuit routing while maintaining electrical isolation. Consider the push-pull locking feature if vibration resistance is critical for the intended operational environment.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Omnetics Micro Strip series, which specializes in miniature rectangular connectors for demanding environments. The A25202-048 variant specifically addresses the need for robust surface mount solutions with high pin counts. It complements other series components by offering standardized dimensions and reliable performance characteristics.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating headers include A24204-048 for through-hole and A24201-048 for surface mount right-angle configurations. Verify mechanical fit and electrical ratings when substituting with equivalent products from other manufacturers.
