A25204-020

Headers, Receptacles, Female Sockets Overview

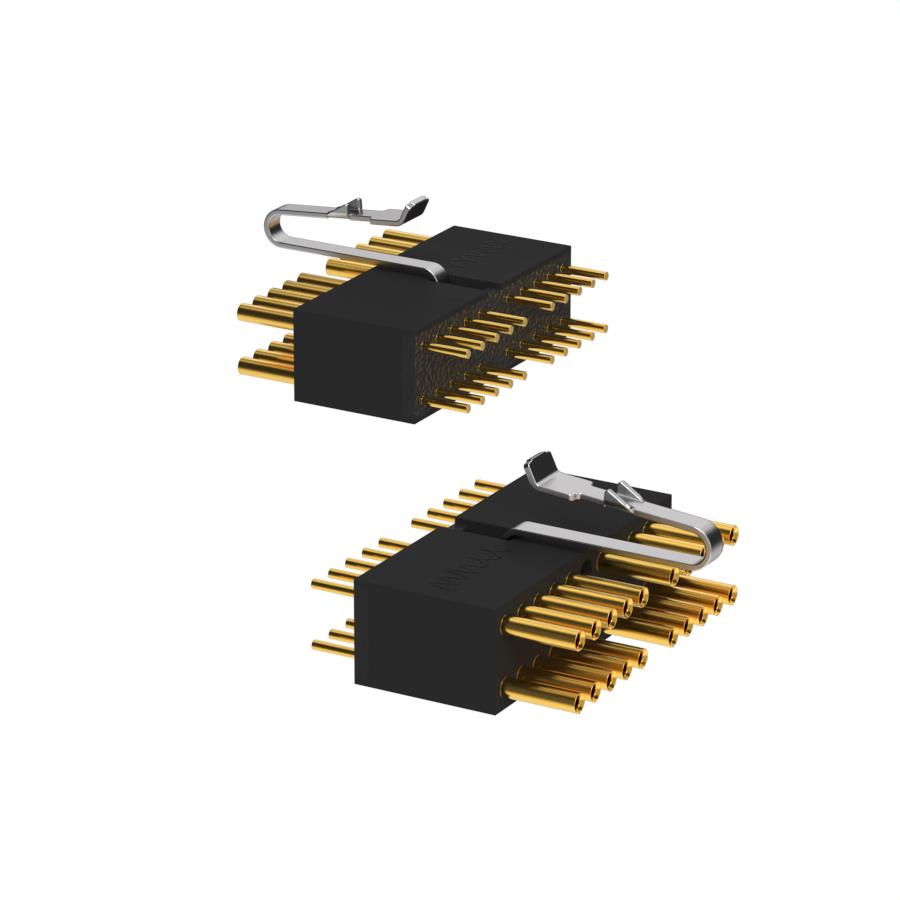

The Omnetics A25204-020 is a 20-position rectangular receptacle connector from the Micro Strip series. It features a 0.050" (1.27mm) contact spacing and utilizes through-hole termination for board mounting. The contacts are female sockets with gold plating to ensure reliable signal transmission. Designed for high-reliability applications, this component supports dense interconnect requirements in compact electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• Micro Strip series design for space-constrained environments
• Gold-plated female socket contacts for corrosion resistance
• Through-hole vertical mounting configuration
• Standardized 0.050 inch centerline spacing

Headers, Receptacles, Female Sockets Applications

• Medical instrumentation interconnects
• Aviation and aerospace control panels
• Military communication equipment
• Compact industrial automation systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against the official Omnetics datasheet to confirm exact pin count, orientation, and termination style. Ensure compatibility with mating header connectors within the same Micro Strip family. Confirm that the through-hole footprint matches the target PCB layout before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this part when a low-profile, high-density rectangular interface is required. The 0.050-inch pitch allows for significant I/O density in small form factors. Consider the through-hole mounting method if mechanical stability during soldering is prioritized over surface-mount flexibility. Evaluate mating connector availability within the same series.

Headers, Receptacles, Female Sockets Part Context

This component belongs to Omnetics' Micro Strip portfolio, which specializes in micro-miniature interconnect solutions. The series is engineered for demanding sectors including medical, military, and aerospace industries. These connectors are designed to provide robust performance in challenging operational environments while maintaining a minimal physical footprint.

Headers, Receptacles, Female Sockets Replacement Considerations

Consult the official Omnetics cross-reference documentation for verified substitute part numbers. Direct replacements must match the 20-position count, 0.050-inch pitch, and through-hole termination type. Generic equivalents may not meet the specified reliability standards required for critical applications.
