A25204-024 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Omnetics. Its product description is DRS-24-DD-LT. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for A25204-024
- Description：DRS-24-DD-LT
- Series：Micro Strip
- Mfr：Omnetics
- Package：Bulk
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：24
- Number of Positions Loaded：All
- Pitch - Mating：0.050" (1.27mm)
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：50.0µin (1.27µm)
- Insulation Color：Black
- Insulation Height：0.170" (4.32mm)
- Contact Length - Post：0.090" (2.29mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：-
- Contact Finish - Post：Tin-Lead
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：3A per Contact
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for A25204-024
Headers, Receptacles, Female Sockets Overview

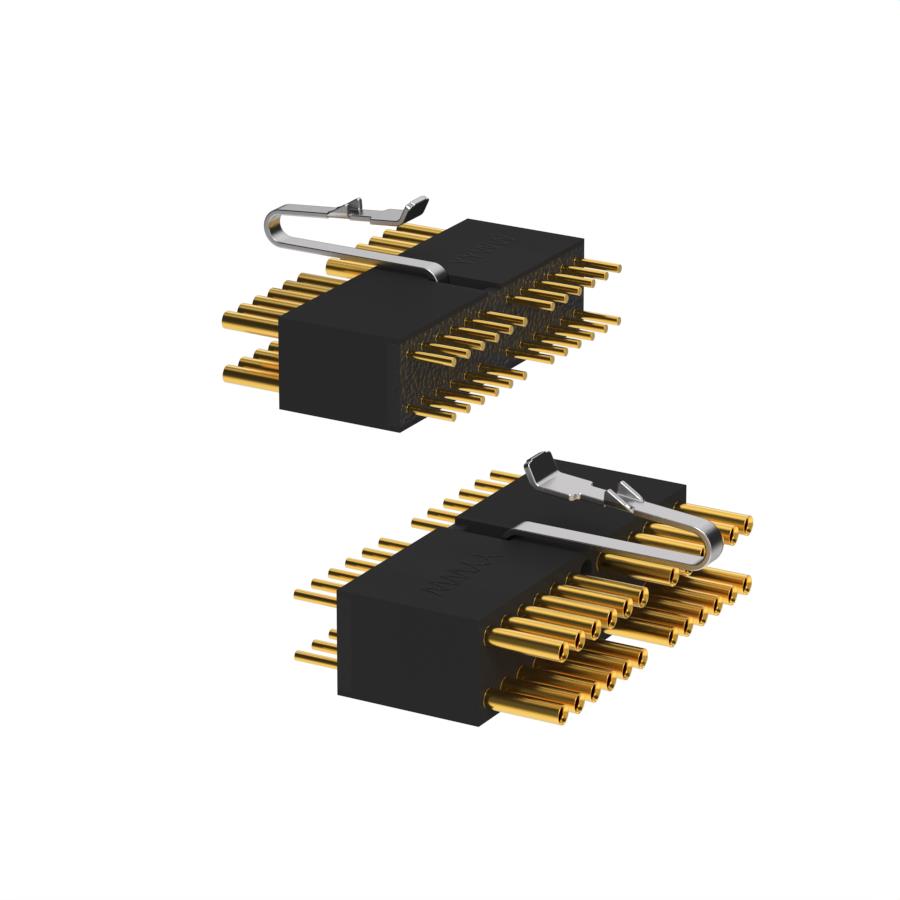

The Omnetics A25204-024 is a 24-position rectangular receptacle connector from the Micro Strip series. It features a 0.050-inch (1.27mm) contact spacing and utilizes female socket contacts with gold plating. Designed for through-hole vertical mounting, this component provides reliable electrical interconnection in compact applications.
Headers, Receptacles, Female Sockets Feature Summary
- Micro Strip series design for high-density interconnects
- Gold-plated female socket contacts for corrosion resistance
- Through-hole vertical mounting configuration
Headers, Receptacles, Female Sockets Applications
- High-density electronic assemblies
- Compact circuit board interconnections
- Industrial control systems requiring reliable signal transmission
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific ordering suffix to ensure correct pin count and termination style. Confirm RoHS compliance status as it varies by variant. Check datasheet for mating connector compatibility. Ensure mounting hole dimensions match PCB layout requirements before procurement.
Headers, Receptacles, Female Sockets Selection Notes
Select this part for applications requiring a 24-position vertical receptacle with 1.27mm pitch. Consider the Micro Strip series for space-constrained designs. Verify that the through-hole termination method aligns with the manufacturing process. Ensure mating plug connectors are compatible with the female socket interface.
Headers, Receptacles, Female Sockets Part Context
Omnetics specializes in micro-miniature connectors for demanding environments. The Micro Strip series offers high reliability in small form factors. This component supports precise signal routing in dense layouts. The brand focuses on durability and consistent performance across various industries.
Headers, Receptacles, Female Sockets Replacement Considerations
Direct substitutes include other 24-position Micro Strip receptacles from Omnetics, such as A25204-012 or A25204-048, depending on required pin count. Verify identical spacing and mounting type when cross-referencing.
