A25204-032

Headers, Receptacles, Female Sockets Overview

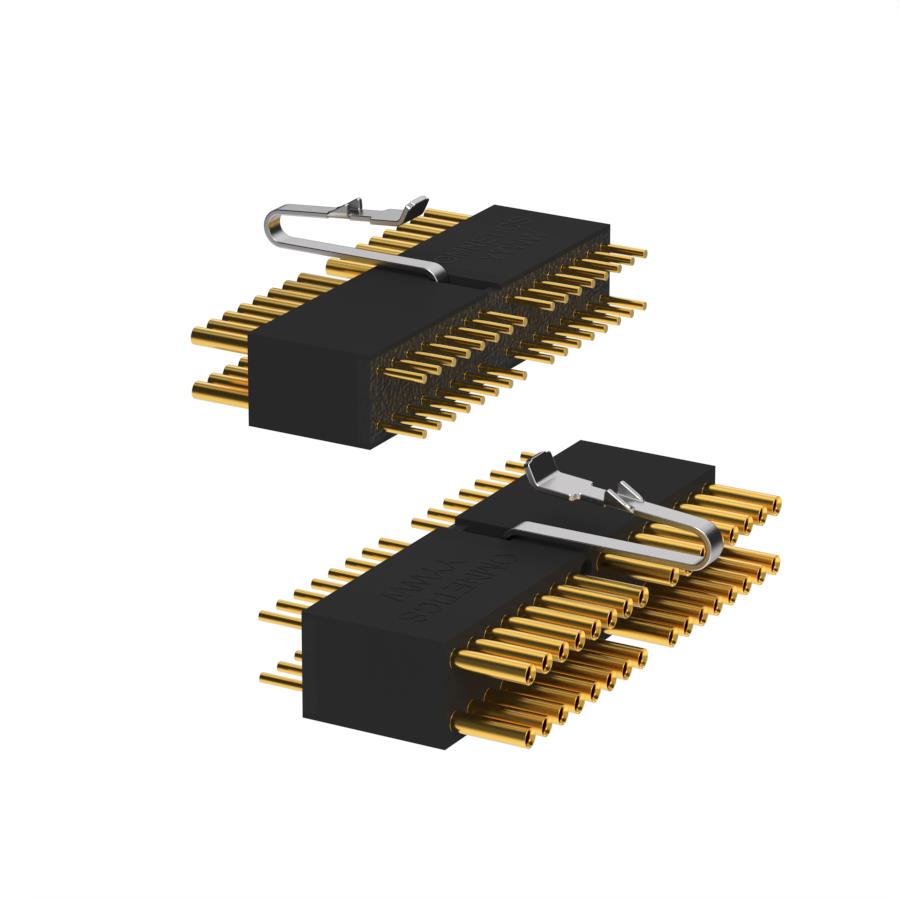

The Omnetics A25204-032 is a 32-position rectangular receptacle connector belonging to the Micro Strip series. It features a 0.050-inch (1.27mm) contact spacing and utilizes female socket contacts with gold plating. Designed for through-hole termination, this component offers high-density interconnect capabilities in a compact form factor suitable for space-constrained electronic assemblies.

Headers, Receptacles, Female Sockets Feature Summary

• High-density 32-position configuration within the Micro Strip series
• Gold-plated female socket contacts for reliable signal transmission
• Through-hole termination method for secure board mounting

Headers, Receptacles, Female Sockets Applications

• Space-constrained electronic assemblies requiring high pin counts
• Industrial control systems utilizing micro-miniature connectors
• Telecommunications equipment needing reliable signal interconnects

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required 32-position Micro Strip receptacle configuration. Confirm through-hole mounting compatibility with the target printed circuit board design. Ensure the gold contact plating meets the environmental and conductivity requirements of the intended application environment before finalizing procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a high-density 32-pin interface is necessary within a micro-miniature footprint. The through-hole termination ensures robust mechanical attachment compared to surface-mount alternatives. Consider the 0.050-inch pitch for compatibility with existing system layouts requiring this specific spacing standard.

Headers, Receptacles, Female Sockets Part Context

This component is part of Omnetics' Micro Strip series, which specializes in micro and nano-miniature high-reliability connectors. The series is designed for applications demanding significant connection density within minimal physical spaces, leveraging advanced manufacturing techniques for consistent performance in demanding environments.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other 32-position Micro Strip receptacles from Omnetics with identical 0.050-inch spacing and through-hole termination. Verify that any alternative maintains the same female socket contact type and gold plating specifications to ensure functional interchangeability.
