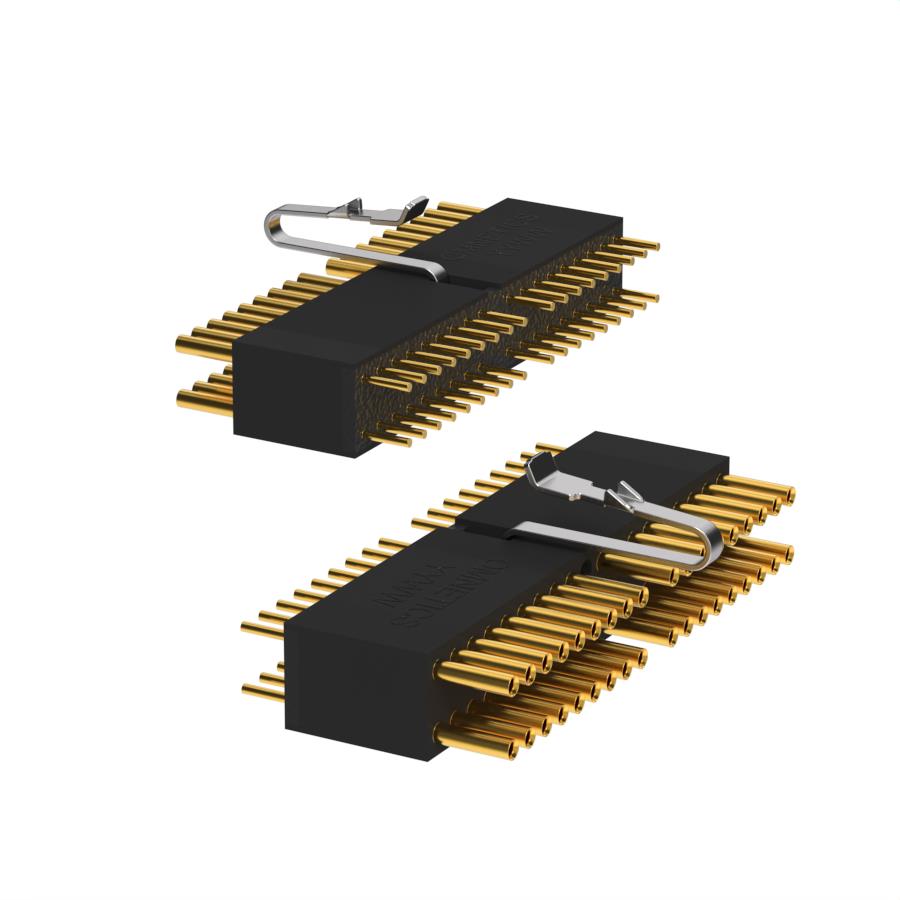

A25204-036

A25204-036 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Omnetics. Its product description is DRS-36-DD-LT. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for A25204-036

• Description：DRS-36-DD-LT
• Series：Micro Strip
• Mfr：Omnetics
• Package：Bulk
• Connector Type：Receptacle
• Contact Type：Female Socket
• Style：Board to Board
• Number of Positions：36
• Number of Positions Loaded：All
• Pitch - Mating：0.050" (1.27mm)
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Finish - Mating：Gold
• Contact Finish Thickness - Mating：50.0µin (1.27µm)
• Insulation Color：Black
• Insulation Height：0.170" (4.32mm)
• Contact Length - Post：0.090" (2.29mm)
• Operating Temperature：-55°C ~ 125°C
• Material Flammability Rating：-
• Contact Finish - Post：Tin-Lead
• Mated Stacking Heights：-
• Ingress Protection：-
• Features：-
• Current Rating (Amps)：3A per Contact
• Voltage Rating：-
