A25204-048

Headers, Receptacles, Female Sockets Overview

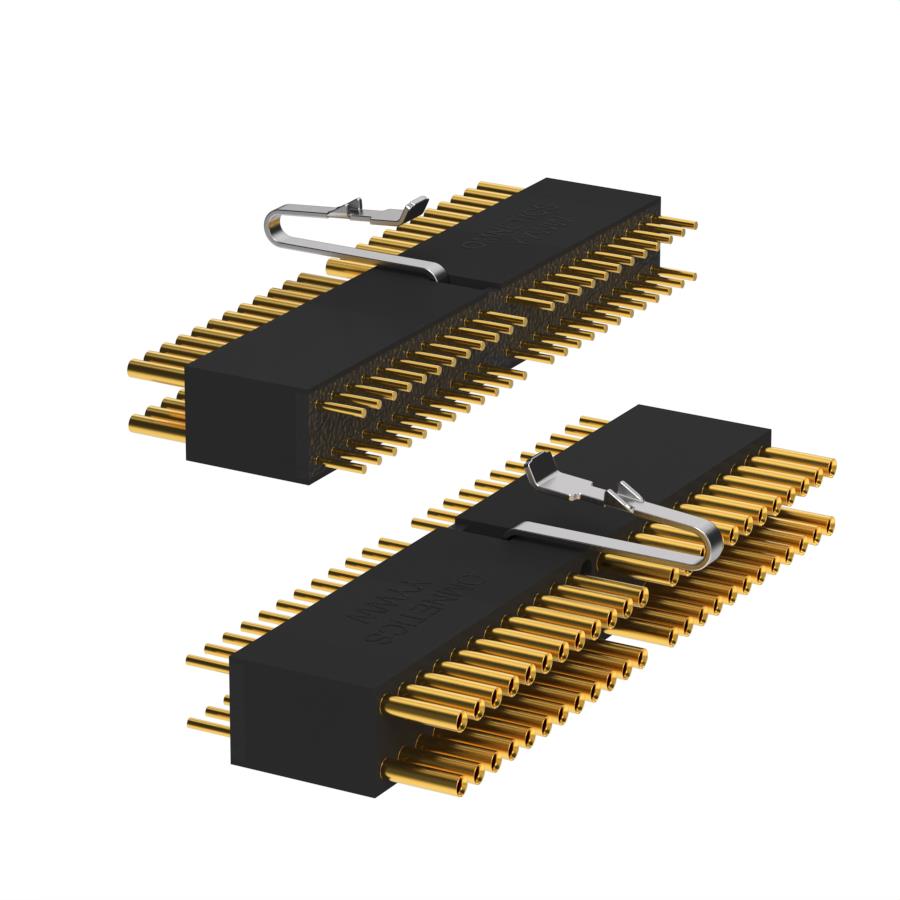

The Omnetics A25204-048 is a 48-position rectangular receptacle connector from the Micro Strip series. It features a 0.050-inch (1.27mm) pitch and utilizes through-hole termination with gold-plated contacts. The housing is constructed from black polyphenylene sulfide (PPS), providing durability for board-to-board applications. Designed for high-reliability environments, it supports a current rating of 3A per contact and operates within a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Micro Strip series design for compact, high-density interconnect solutions
• Gold-plated contacts ensure reliable signal transmission in demanding conditions
• Polyphenylene sulfide insulation offers thermal stability and mechanical strength

Headers, Receptacles, Female Sockets Applications

• Board-to-board connections in aerospace systems
• High-reliability military electronic assemblies
• Compact instrumentation and sensor interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official Omnetics documentation to confirm exact termination style and plating specifications. Ensure compatibility with mating headers such as the A24204-048 series. Confirm that the required current rating and environmental operating temperatures align with the system design requirements before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 48-position, 0.050-inch pitch through-hole receptacle is required. It is suitable for applications needing robust PPS insulation and gold contact plating. Consider the Micro Strip series for space-constrained designs requiring high reliability. Verify mating part numbers to ensure proper alignment and connection integrity within the assembly.

Headers, Receptacles, Female Sockets Part Context

This connector belongs to the Micro Strip family, which focuses on miniaturized, high-performance interconnects. Omnetics specializes in these components for mission-critical industries. The A25204-048 represents a standard configuration within this line, offering a balance of density and reliability for specialized electronic packaging needs.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible mating parts include the A24204-048 pin header. No direct substitute part numbers are publicly confirmed for this specific model; consult manufacturer guidelines for cross-reference options.
