A2GS-5002I

Overview

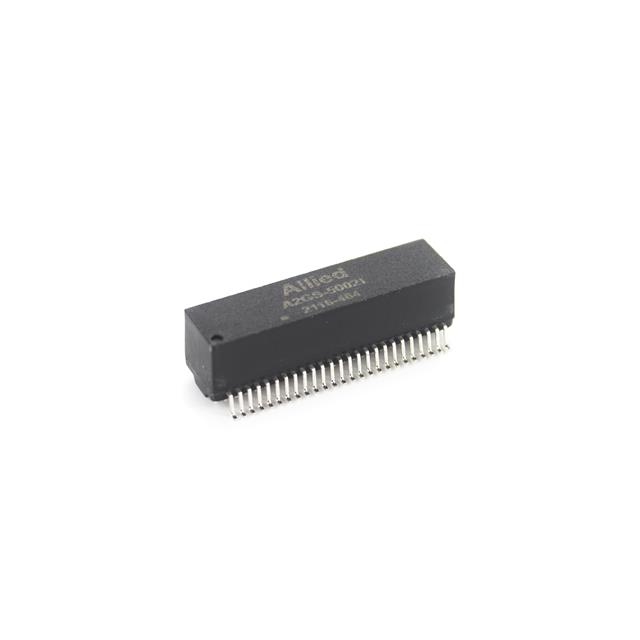

The A2GS-5002I is a dual-port LAN filter module manufactured by Allied Components International, designed for 2.5G Base-T applications. It integrates pulse transformers with a 1:1 current transformer ratio and an inductance of 180µH. The component utilizes a surface-mount package measuring 28.20mm x 7.75mm. It complies with IEEE 802.3 standards and meets RoHS environmental regulations. The device operates under Moisture Sensitivity Level 1.

Feature Summary

• Integrates pulse transformers with 1:1 CT ratio for signal integrity
• Designed as a dual-port LAN filter module for electromagnetic interference filtering
• Compliant with IEEE 802.3 requirements for high-performance networking

Applications

• 2.5G Base-T Ethernet connections
• High-performance networking equipment
• LAN filter modules requiring electromagnetic interference suppression

Procurement Notes

Verify the specific ordering suffix (e.g., TR) against the manufacturer's official documentation to ensure correct packaging configuration. Confirm that the received components match the active part status and RoHS compliance declarations found in the datasheet. Cross-reference the physical dimensions and pinout with the provided specifications to prevent integration errors during assembly.

Selection Notes

Select this component when designing systems requiring integrated pulse transformers for 2.5G Base-T interfaces. The dual-port architecture simplifies board layout compared to discrete solutions. Ensure the design accommodates the specified surface-mount footprint and thermal requirements associated with the 28.20mm x 7.75mm package dimensions.

Part Context

Allied Components International specializes in magnetic products including inductors and custom magnetics. The A2GS series represents their line of LAN filter modules tailored for modern Ethernet standards. This specific model addresses the needs for compact, high-speed data transmission components in network infrastructure.

Replacement Considerations

Consult official substitution lists from Allied Components International for verified alternatives. Generic cross-references may not guarantee identical inductance or form factor compatibility.
