A36SA3212LPPL

Overview

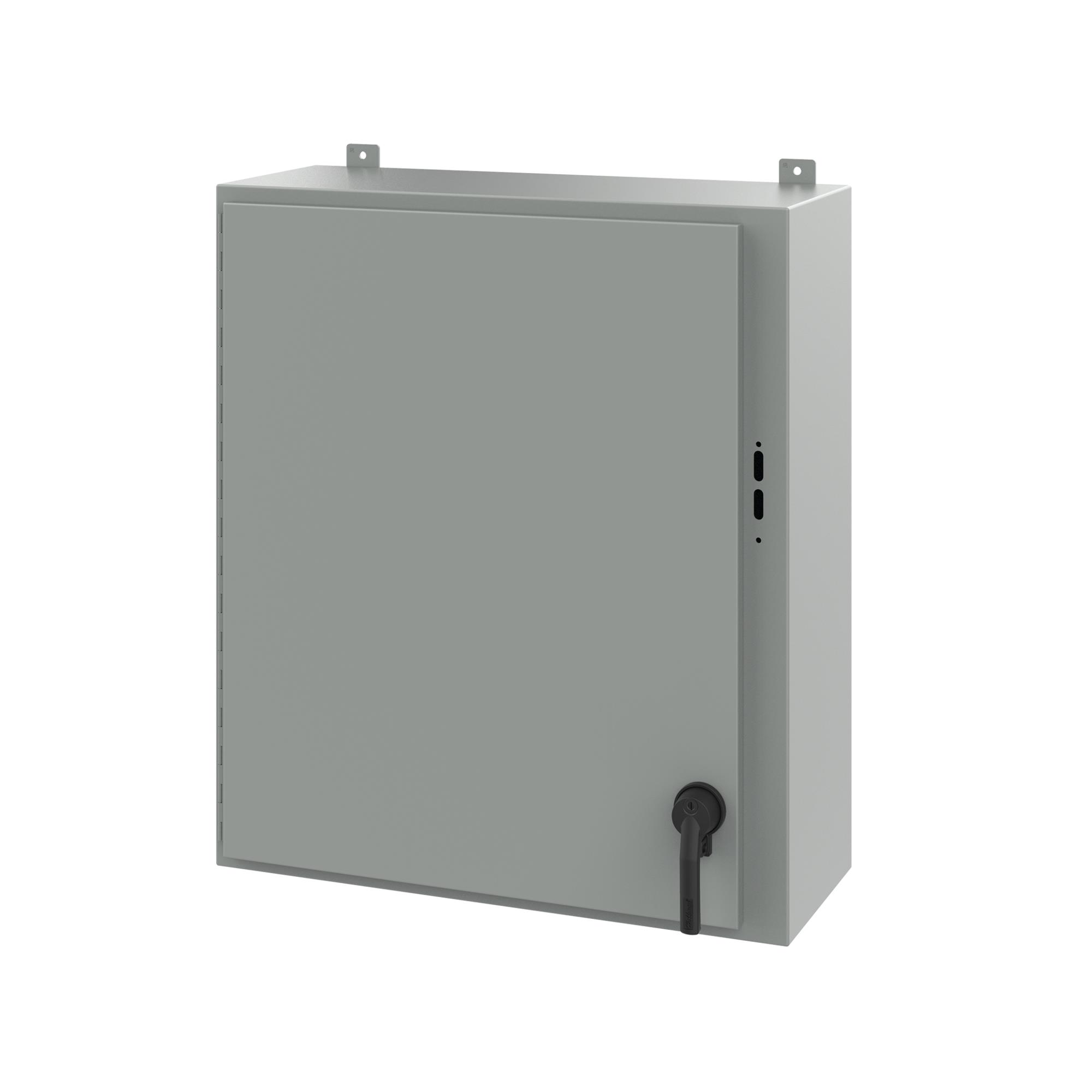

The Hoffman A36SA3212LPPL is a Type 12 disconnect enclosure constructed from mild steel with a 14-gauge body thickness. It features a single hinged door and measures 36 inches in length, 31.38 inches in width, and 12 inches in depth. The exterior finish is ANSI 61 gray polyester powder coat, while the interior is painted white. This unit provides NEMA 12/13 and IP65 protection ratings for wall mounting applications.

Feature Summary

• Provides visual ON/OFF indication via an integrated easy-access handle
• Constructed from 14-gauge mild steel for structural durability
• Features continuous hinged cover design for secure access

Applications

• Wall-mounted electrical disconnect installations
• Industrial environments requiring dust-tight protection
• Locations necessitating visible circuit breaker status indication

Procurement Notes

Verify that the required disconnect switch rating matches the enclosure's internal cutout specifications. Confirm that the physical dimensions accommodate the installation site clearance requirements. Ensure the NEMA 12/13 rating aligns with the environmental conditions of the deployment location to guarantee proper ingress protection performance.

Selection Notes

Select this model when a dedicated disconnect housing with integrated handle visibility is required. The 14-gauge steel construction supports standard industrial mounting loads. The specific dimensional profile suits panels needing substantial internal volume for larger switching components while maintaining a compact external footprint.

Part Context

This component belongs to the Hoffman SA series of disconnect enclosures designed for commercial and industrial use. The series emphasizes safety through visible handle positioning and robust metal construction. The LPPL suffix denotes specific finish and hardware configurations within the product line.

Replacement Considerations

Cross-reference compatible models such as 32FA98 for equivalent dimensional and functional specifications. Verify that substitute units maintain identical NEMA 12/13 ratings and steel gauge thickness to ensure consistent environmental sealing and mechanical strength.
