A423010LP

Overview

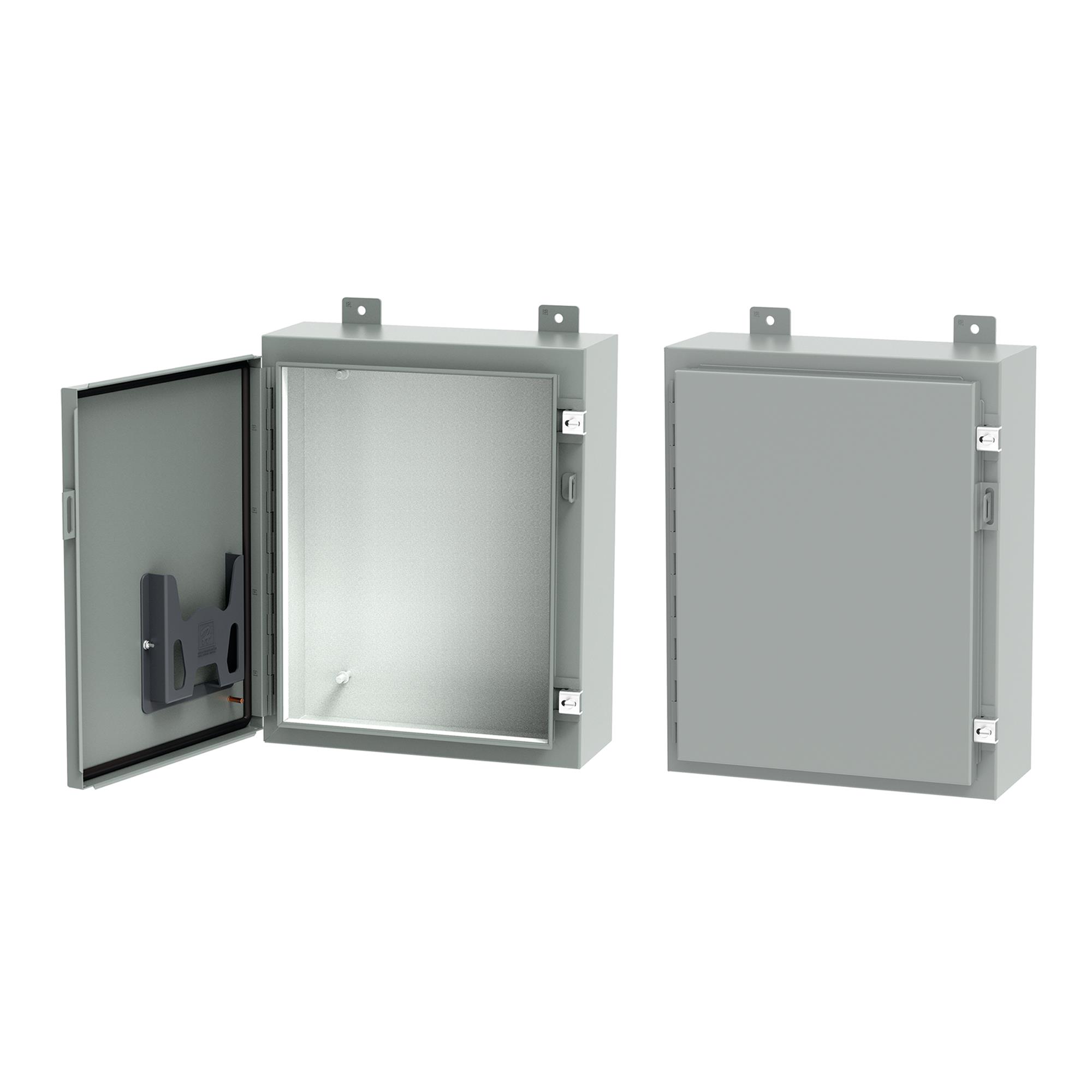

The Hoffman Enclosures A423010LP is a medium-sized, single-door wall-mount enclosure constructed from mild steel. It features external welded-on mounting brackets and measures 42 inches in height, 30 inches in width, and 10 inches in depth. The unit provides NEMA Type 12, Type 13, and IP65 protection ratings for indoor use. The body is fabricated from 14-gauge steel with continuously welded and ground smooth seams. The door utilizes a continuous hinge design secured by screw-down clamp latches.

Feature Summary

• Continuous hinge door mechanism with screw-down clamp latches
• Externally mounted welded-on brackets for wall installation
• Seamless construction with continuously welded and ground joints

Applications

• Indoor industrial equipment housing
• Control panel enclosures requiring dust and drip protection
• Electrical component protection in commercial environments

Procurement Notes

Verify the specific gauge requirements against your structural load needs, as bodies are typically 14 or 16 gauge. Confirm that the external bracket configuration matches your wall mounting infrastructure. Ensure the internal volume accommodates all components with adequate clearance for heat dissipation and wiring. Check if additional accessories like shelves or rails are required for your specific assembly.

Selection Notes

Select this model when high ingress protection is needed for indoor applications. The 14-gauge steel body offers robust mechanical protection compared to thinner alternatives. The continuous hinge enhances durability over standard two-hinge designs. Consider the 10-inch depth for cable management space. Verify compatibility with existing DIN rail or mounting hardware before finalizing the selection.

Part Context

This part belongs to the Hoffman LP series of steel enclosures designed for general industrial protection. The LP designation indicates the inclusion of a continuous hinge and clamp latch system. It is part of a broader family of wall-mount units varying in dimensions and gauge thicknesses to suit different equipment sizes and environmental demands.

Replacement Considerations

Direct substitutes include other Hoffman models with identical 42x30x10 dimensions and NEMA 12/13 ratings. Verify that replacement units maintain the same 14-gauge body thickness and continuous hinge configuration to ensure physical compatibility with existing mounting brackets.
