A54SX72A-FG256M

Overview

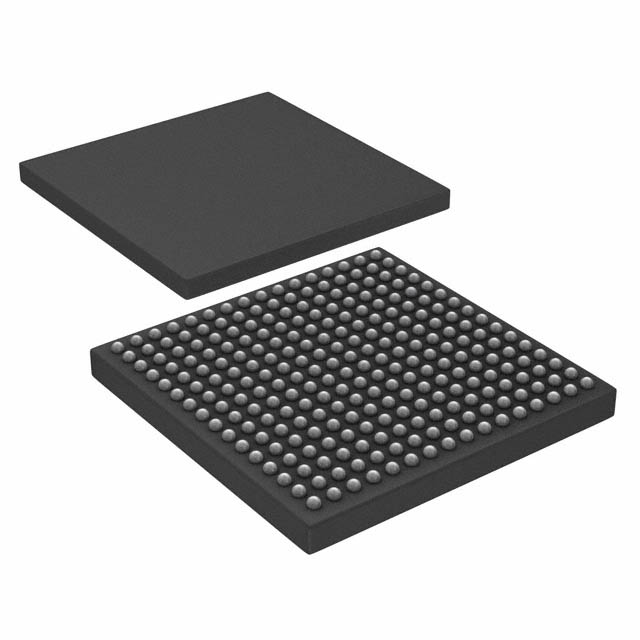

The A54SX72A-FG256M is a Field Programmable Gate Array from the SX-A family, manufactured by Microchip Technology. It features 108,000 system gates and 6,036 logic modules within a 256-pin Fine Pitch Ball Grid Array (FBGA) package. The device supports up to 203 user I/Os and operates with supply voltages ranging from 2.25 V to 2.75 V. It delivers a maximum operating frequency of 172 MHz and functions reliably across an industrial temperature range of -40°C to +85°C.

Feature Summary

• Nonvolatile antifuse architecture providing permanent configuration without external memory
• Hot-swap compliant I/Os allowing safe insertion into active systems without power sequencing
• Support for mixed-voltage operation including 2.5 V, 3.3 V, and 5 V standards with 5 V input tolerance
• Integrated boundary-scan testing compliant with IEEE Standard 1149.1

Applications

• High-performance digital signal processing requiring deterministic timing
• Industrial control systems necessitating hot-swappable interface capabilities
• Secure hardware implementations utilizing antifuse-based protection against reverse engineering
• Complex logic integration replacing multiple CPLDs or gate arrays

Procurement Notes

Verify component authenticity through authorized Microchip distributors. Confirm that the specific ordering suffix matches the required speed grade and temperature rating. Ensure proper handling procedures are followed due to moisture sensitivity classification. Review the latest datasheet revisions for any updates regarding pin assignments or electrical characteristics before finalizing procurement orders.

Selection Notes

Select this model when high gate density and robust security features are required. The antifuse technology ensures permanent programming suitable for mass production. Verify that the FBGA-256 package fits the PCB layout constraints. Consider the thermal management requirements associated with the specified operating temperature range and voltage specifications during the design phase.

Part Context

This component belongs to the Actel SX-A FPGA family, which utilizes CMOS antifuse technology. The SX-A series is designed for applications demanding low power consumption and high performance. The A54SX72A variant represents the highest capacity within the standard SX-A lineup, offering extensive logic resources for complex digital designs.

Replacement Considerations

Direct replacements include other devices within the SX-A family such as the A54SX32A or A54SX16A, though these offer lower gate counts. Cross-family migration to newer Microchip FPGA architectures may require significant design adaptation. Verify pin compatibility and software toolchain support before substituting.
