A71-1412E1DTH

Overview

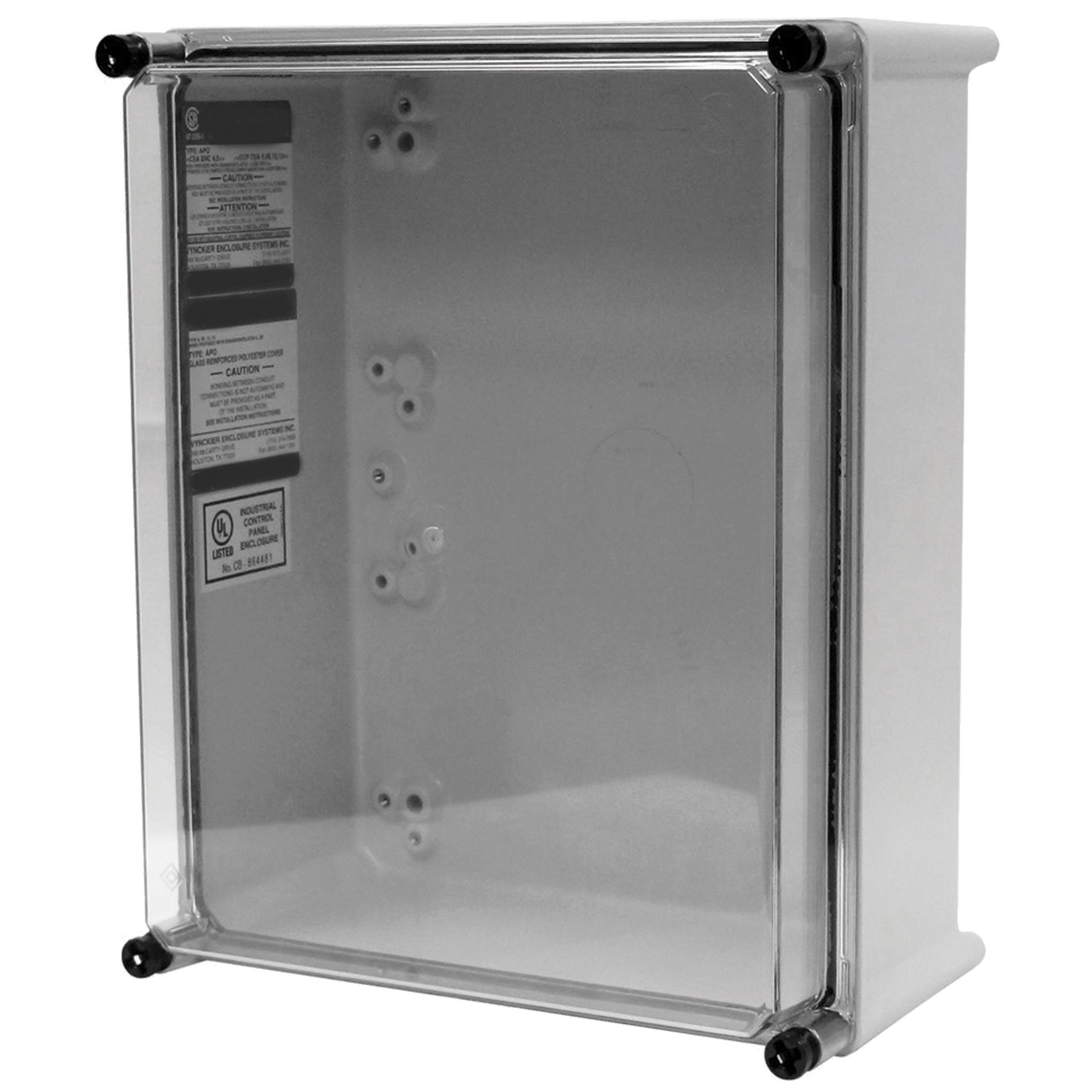

The nVent Hoffman A71-1412E1DTH is a light gray fiberglass reinforced polyester (FRP) enclosure designed for industrial applications. It features a transparent inspection window on the door, allowing visual monitoring of internal components without opening the unit. The enclosure measures approximately 14.65 x 11.89 x 6.93 inches and is constructed from corrosion-resistant materials suitable for harsh environments. It includes concealed removable hinges with captive pins that allow for left or right-hand mounting configurations.

Feature Summary

• Transparent inspection window for visual component monitoring
• Corrosion-resistant fiberglass construction
• Concealed removable hinges with captive pins
• Reversible hinge configuration for left or right opening

Applications

• Industrial control panels in corrosive environments
• Food and beverage processing equipment housing
• Pharmaceutical manufacturing machinery enclosures
• Washdown areas requiring frequent cleaning

Procurement Notes

Verify the exact dimensional requirements against your installation space before ordering. Confirm that the FRP material compatibility aligns with your specific chemical exposure risks. Ensure the hinge orientation matches your panel layout needs. Check for any additional accessories required for mounting or sealing.

Selection Notes

Select this model when corrosion resistance and visual access are primary requirements. The fiberglass construction offers durability in wet or chemically aggressive settings compared to standard steel options. Consider the reversible hinge feature if space constraints dictate a specific door swing direction. Verify that the internal volume accommodates all necessary components.

Part Context

This part belongs to the Hoffman APO series of fiberglass enclosures. These units are specifically engineered for environments where stainless steel is insufficient or cost-prohibitive. The series provides a balance of protection and visibility, making it suitable for regulated industries like food processing and pharmaceuticals where hygiene and maintenance are critical.

Replacement Considerations

Direct substitutes may include other models within the Hoffman APO fiberglass line with similar dimensions. Verify that any replacement maintains the transparent window feature and hinge configuration. Cross-reference mounting hole patterns to ensure compatibility with existing infrastructure.
