A74BP12G

Overview

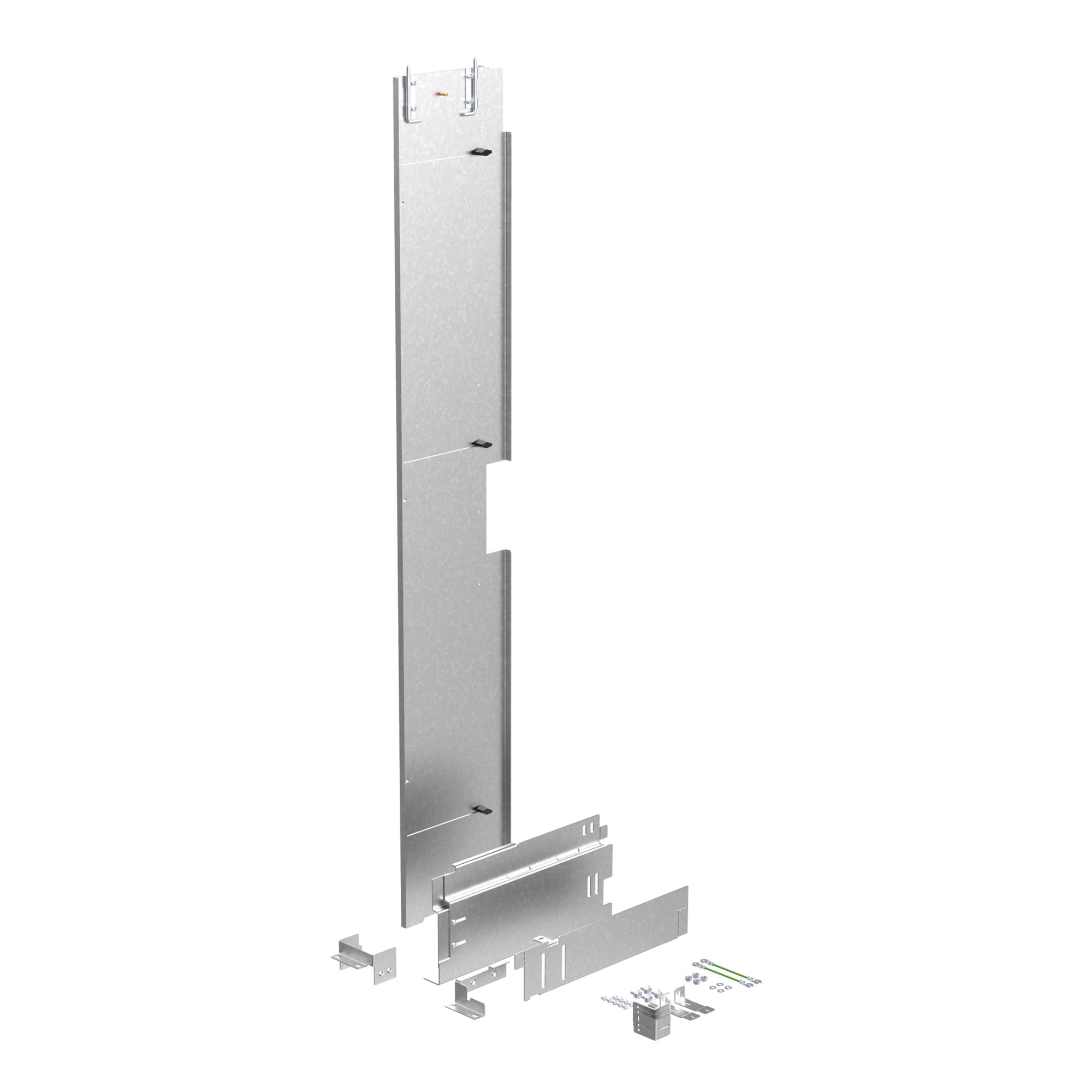

The A74BP12G is a universal conductive barrier panel manufactured by Hoffman Enclosures, Inc. It is designed for use in unibody free-standing or floor-mount enclosures equipped with a centerpost. The panel measures 74 inches by 12 inches and features a galvanized finish on mild steel material. Its primary function is to provide a Type 1 solution that reduces the risk of electrical hazards, including electrical shock and arc flash, by minimizing incidental contact with high voltage components.

Feature Summary

• Provides a Type 1 safety solution to mitigate electrical shock and arc flash risks
• Conductive construction minimizes incidental contact with high voltage elements
• Designed specifically for enclosures featuring a centerpost configuration

Applications

• Unibody free-standing enclosures with centerposts
• Floor-mount enclosures with centerposts
• Industrial electrical systems requiring high voltage isolation

Procurement Notes

Verify that the target enclosure includes a centerpost, as this component is incompatible with standard flat-back designs. Confirm the internal dimensions match the 74 x 12 inch specification. Ensure the galvanized mild steel finish meets environmental requirements for the installation site. Cross-reference the manufacturer part number to avoid confusion with non-conductive alternatives.

Selection Notes

Select this model only when the enclosure design incorporates a centerpost structure. The conductive nature of the panel requires proper grounding integration within the system design. Consider the galvanized finish for corrosion resistance in typical industrial environments. This accessory is strictly for hazard reduction and does not serve as a primary structural support element.

Part Context

This barrier panel belongs to the Hoffman Enclosures accessory line, intended to enhance safety within larger electrical housing systems. It complements main enclosure units by adding internal separation layers. The product supports compliance with safety standards regarding exposure to live parts in industrial control applications.

Replacement Considerations

No public confirmed substitute part numbers are available.
