A79014-001

Headers, Male Pins Overview

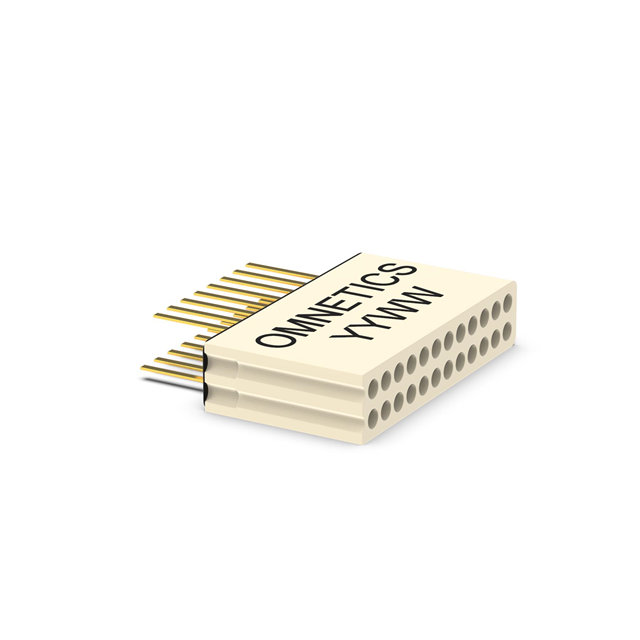

The Omnetics A79014-001 is a male header connector from the Nano Strip series, designed for surface mount installation. It features an 18-position dual-row configuration with a 0.025-inch (0.64mm) mating pitch and 0.030-inch (0.76mm) row spacing. The connector utilizes push-pull latching and includes guide pins for alignment. Rated at 1A per contact, it operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Surface mount male header design
• Push-pull latching mechanism
• Integrated guide pin alignment

Headers, Male Pins Applications

• High-reliability aerospace systems
• Defense electronics interconnects
• Neuroscience research instrumentation

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm pin count, orientation, and guide pin configuration. Ensure compatibility with mating female connectors in the same series. Check for RoHS compliance status and moisture sensitivity level requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a compact, ruggedized male header is required for board-to-cable or board-to-board connections. Consider the surface mount footprint and guide pin placement for PCB layout. Evaluate thermal and current ratings against system demands.

Headers, Male Pins Part Context

This connector belongs to the Nano Strip series, known for precision interconnects in demanding environments. It complements other variants like A79010-001 and A79011-001 within the same family, offering consistent mechanical and electrical characteristics across the product line.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available for this component.

Headers, Male Pins FAQ

What is the latching mechanism type?

The connector uses a push-pull latching mechanism.

Does the connector include guide pins?

Yes, the A79014-001 includes guide pins for alignment.
