A79015-001

Headers, Receptacles, Female Sockets Overview

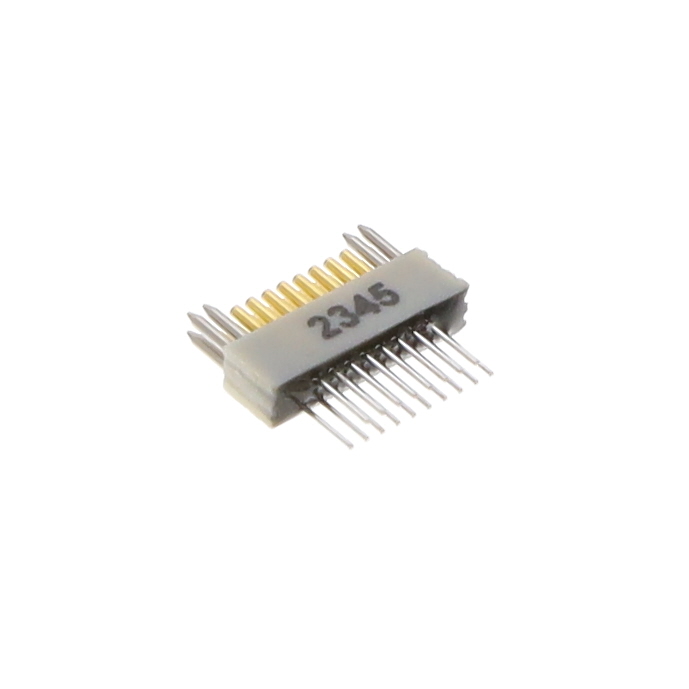

The A79015-001 is a dual-row female receptacle connector from the Nano Strip series, manufactured by Omnetics. It features 18 positions with a mating pitch of 0.025 inches (0.64mm) and a row spacing of 0.030 inches (0.76mm). Designed for through-hole termination, it utilizes gold-plated contacts with a thickness of 50.0µin (1.27µm) on copper alloy pins. The connector includes six guide posts for precise alignment and operates within a temperature range of -55°C to 125°C. Rated at 1A per contact, it employs thermoplastic insulation.

Headers, Receptacles, Female Sockets Feature Summary

• Incorporates six integrated guide posts to ensure accurate board-to-board alignment during assembly.
• Features a push-pull locking mechanism for secure mechanical retention between mating connectors.
• Utilizes gold-plated circular contacts to provide reliable electrical performance in high-reliability applications.

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections requiring precise alignment
• Neuroscience research instrumentation
• High-density electronic systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify that the specific part number matches the required configuration, particularly the inclusion of six guide posts and the straight-through-hole tail style. Confirm that the manufacturer is Omnetics Connector Corporation. Ensure compatibility with mating male headers from the same Nano Strip series. Check datasheets for updated environmental classifications and material specifications before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a dual-row female connector with integrated guide posts is necessary for high-precision alignment. The 0.025-inch pitch allows for high density in compact spaces. Consider the through-hole mounting style for robust mechanical stability. Evaluate the 1A current rating against system requirements. Ensure the operating temperature range meets the application's thermal conditions.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Nano Strip series, which provides precision micro-connectors for demanding environments. The series is known for driving advancements in neuroscience research due to its reliability and small form factor. The A79015-001 specifically represents a dual-row female variant designed for board-to-board connections with enhanced alignment features.

Headers, Receptacles, Female Sockets Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify pinout and mechanical dimensions if considering alternative manufacturers.

Headers, Receptacles, Female Sockets FAQ

What is the purpose of the six guide posts?

The six guide posts ensure precise alignment between the male and female connectors during mating, reducing misalignment risks.

What is the contact plating specification?

The contacts feature gold plating with a thickness of 50.0µin (1.27µm) on copper alloy pins.
