A79016-001

Headers, Male Pins Overview

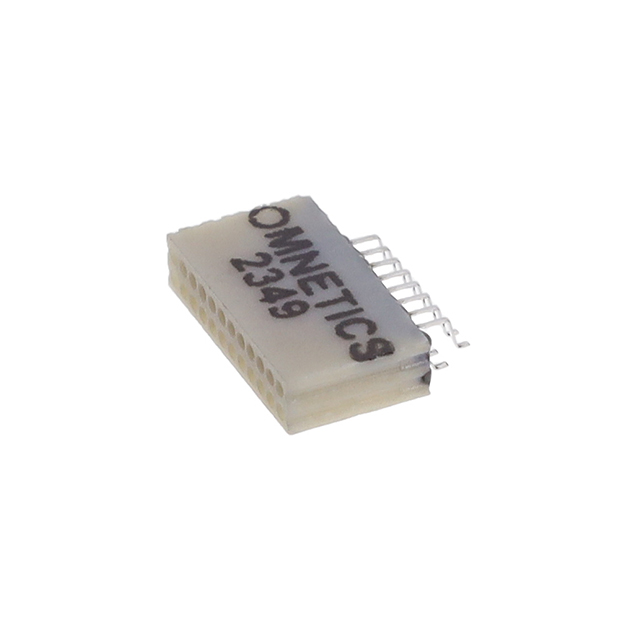

The Omnetics A79016-001 is a Nano Strip series connector header featuring 18 male pin contacts arranged in a dual-row configuration. Designed for surface mount installation with a right-angle orientation, it utilizes a 0.025-inch (0.64mm) mating pitch and a 0.030-inch (0.76mm) row spacing. The component includes six guide posts for precise alignment during assembly. It operates within a temperature range of -55°C to 125°C and supports a rated current of 1A per contact.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for board-to-cable or wire applications
• Six integrated guide posts ensure accurate connector alignment
• Push-pull locking mechanism provides secure mechanical retention

Headers, Male Pins Applications

• High-reliability aerospace interconnect systems
• Neuroscience research instrumentation
• Precision medical device assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix designation against official Omnetics documentation to confirm exact guide post count and orientation. Ensure compatibility with mating receptacles regarding thermal ratings and current capacity. Confirm that the right-angle form factor aligns with the target PCB layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this part for applications requiring high-density connections with precise alignment features. The right-angle footprint optimizes space efficiency in constrained enclosures. Verify that the 1A per contact rating meets system electrical requirements and that the surface mount process accommodates the specified insulation height and thermal profile.

Headers, Male Pins Part Context

This component belongs to the Nano Strip series, which provides precision connectors for demanding environments. The series is characterized by small form factors and high reliability standards suitable for critical applications. The A79016-001 variant specifically addresses needs for right-angle mounting with enhanced alignment capabilities through its guide post configuration.

Headers, Male Pins Replacement Considerations

Consult official Omnetics substitution guides for verified equivalents. Cross-reference mating dimensions and electrical ratings when considering alternative suppliers. Ensure any substitute maintains the same guide post configuration and right-angle orientation to preserve assembly integrity.
