A79017-001

Headers, Receptacles, Female Sockets Overview

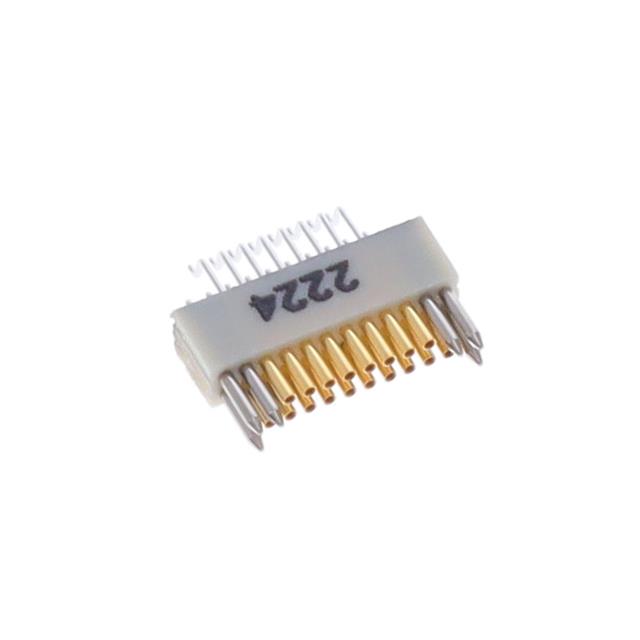

The Omnetics A79017-001 is a high-reliability Nano Strip series receptacle connector designed for board-to-cable/wire applications. It features an 18-position configuration with a 0.025" (0.64mm) mating spacing and 0.030" (0.76mm) row spacing. The component utilizes surface mount technology in a right-angle orientation, employing a push-pull locking mechanism. Contacts are gold-plated copper alloy with a 50.0µin thickness, rated at 1A per contact. The housing is natural thermoplastic plastic, supporting a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle surface mount design for compact board-to-cable integration
• Push-pull locking mechanism ensures secure connection retention
• Gold-plated contacts provide reliable signal transmission
• Integrated guide posts assist in precise alignment during assembly

Headers, Receptacles, Female Sockets Applications

• Board-to-cable interconnections requiring right-angle routing
• High-reliability aerospace and defense systems
• Medical device internal wiring harnesses
• Compact electronic assemblies with space constraints

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against the manufacturer's official documentation to ensure correct pin count, orientation, and plating specifications. Confirm that the right-angle surface mount form factor aligns with the target PCB layout requirements. Check for any updated environmental compliance declarations or RoHS status directly from the supplier before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a right-angle SMT receptacle is required for 18-position connections. Ensure the PCB footprint accommodates the 0.025" pitch and right-angle profile. Verify that the push-pull locking style matches the system's mechanical retention needs. Consider the operating temperature range and current rating for the intended application environment.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Nano Strip series by Omnetics, known for precision connectors used in demanding environments. The series offers various configurations including male/female, straight/right-angle, and through-hole/SMT options. The A79017-001 specifically addresses the need for robust, small-form-factor interconnects in specialized industries.

Headers, Receptacles, Female Sockets Replacement Considerations

Publicly confirmed parameter-equivalent substitutes include Omnetics A79041-001 and A79043-001. Verify mechanical compatibility and electrical specifications before substituting.
