A79018-001

Headers, Male Pins Overview

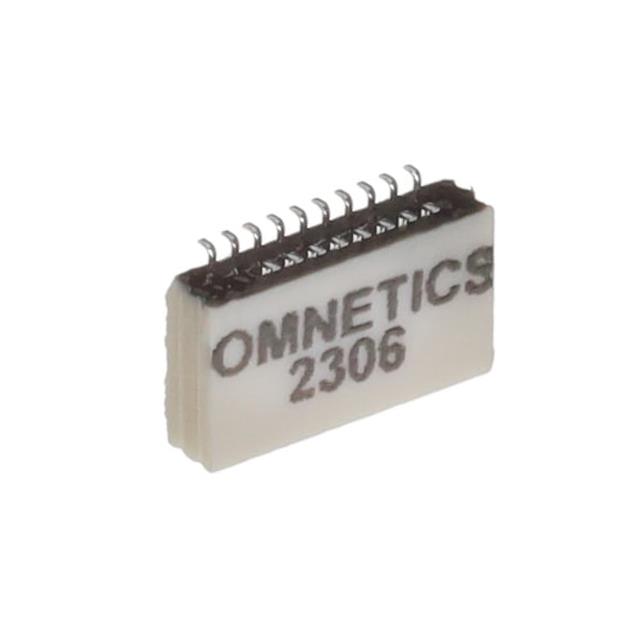

The Omnetics A79018-001 is a Nano Strip series rectangular connector header designed for surface mount technology. It features an 18-position, dual-row configuration with male pin contacts. The connector utilizes a 0.025-inch (0.64mm) mating pitch and a 0.030-inch (0.76mm) row spacing. Contacts are constructed from beryllium copper with a 50.0µin (1.27µm) gold plating on the mating interface and tin-lead plating on the tail. The housing is made of natural thermoplastic material, providing an insulation height of 0.173 inches (4.40mm). It supports a rated current of 1A per contact and operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Surface mount design with push-pull locking mechanism
• Dual-row male pin configuration for board-to-cable applications
• Integrated guide pins for precise alignment during assembly

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board connections
• High-density electronic assemblies requiring precision alignment

Headers, Male Pins Procurement Notes

Verify the specific suffix and orientation against the official Omnetics datasheet to ensure compatibility with the intended PCB footprint. Confirm that the required guide pin configuration matches the design requirements. Check for RoHS compliance status if restricted substances are a constraint for the final product assembly.

Headers, Male Pins Selection Notes

Select this component when a dual-row surface mount male header is required for high-density applications. Ensure the PCB layout accommodates the 0.025-inch pitch and the specific insulation height. Consider the thermal profile limits of the thermoplastic housing during soldering processes to maintain structural integrity.

Headers, Male Pins Part Context

This part belongs to the Nano Strip series by Omnetics, known for precision connectors used in demanding environments. The series offers various configurations including right-angle and vertical orientations. The A79018-001 specifically provides a standard vertical surface mount solution with integrated guidance features.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and electrical specifications before considering alternative sources.
