A79022-001

Headers, Male Pins Overview

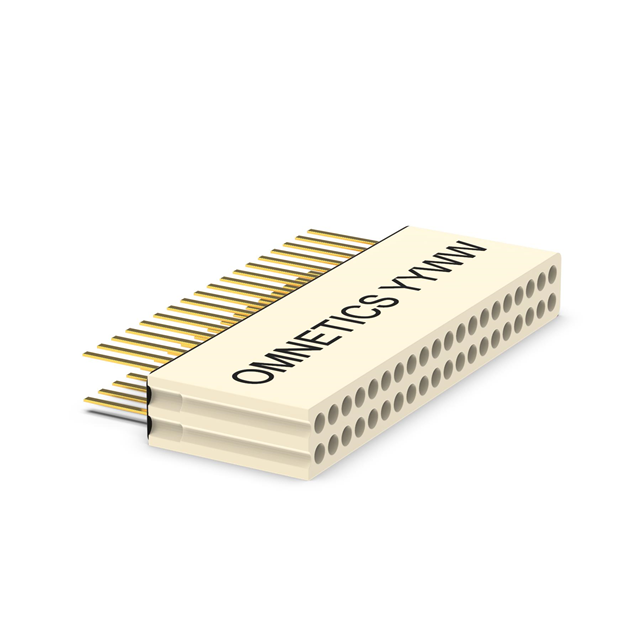

The Omnetics A79022-001 is a 36-position dual-row male Nano Strip connector designed for through-hole board-to-wire applications. It features a 0.025-inch (0.64mm) mating pitch and a 0.030-inch (0.76mm) row spacing. The contacts are made of beryllium copper with a 50.0µin (1.27µm) gold plating thickness, rated at 1A per contact. The housing is natural thermoplastic with an insulation height of 0.173 inches (4.40mm). It includes four guide posts and operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Nano Strip series precision interconnect system
• Push-pull locking mechanism for secure attachment
• Integrated guide pins for accurate alignment
• Gold-plated circular male pin contacts

Headers, Male Pins Applications

• Neuroscience research instrumentation
• Precision medical devices
• High-density electronic assemblies
• Board-to-wire interconnections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to ensure correct configuration. Confirm that the required guide post holes match the physical layout. Check current availability as lead times may vary. Ensure compatibility with mating female connectors in the same series. Validate thermal and electrical ratings against application requirements before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when high-density connections are required in a small footprint. The dual-row design maximizes pin count while maintaining standard spacing. Consider the through-hole mounting style for robust mechanical stability. Evaluate the push-pull locking requirement versus other retention methods. Ensure the operating environment falls within the specified temperature range.

Headers, Male Pins Part Context

This part belongs to the Nano Strip family from Omnetics, known for precision connectors used in demanding fields like neuroscience. The series offers various configurations including surface mount and through-hole options. The A79022-001 specifically addresses needs for reliable, high-count interconnects in compact spaces.

Headers, Male Pins Replacement Considerations

Direct substitutes include parts from the same Nano Strip series with matching pin counts and row configurations. Verify mechanical dimensions and electrical specifications before substitution. Cross-model generic features do not guarantee interchangeability.
