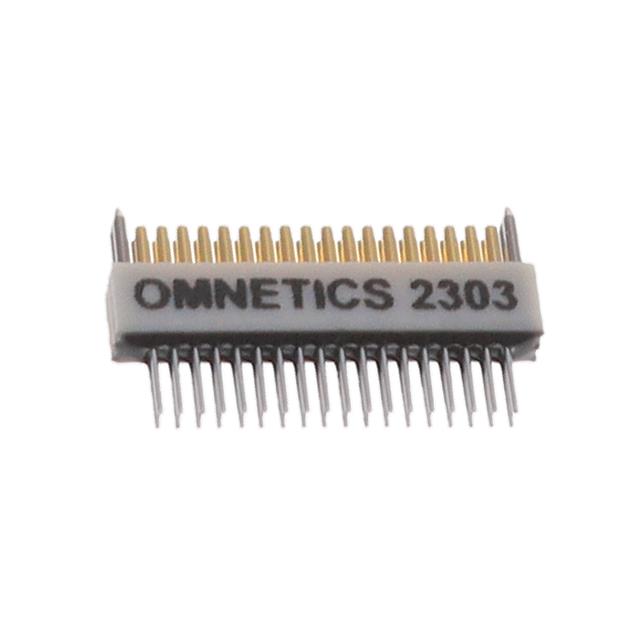

A79023-001

$139.79

Description：NANO 36 SKT FEMALE PCB W/ 4 GUID
Series：Nano Strip
Mfr：Omnetics
Package：Case

SKU:9d357bccfa63 Category: Headers, Receptacles, Female Sockets Brand: Omnetics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

A79023-001 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Omnetics. Its product description is NANO 36 SKT FEMALE PCB W/ 4 GUID. Review the specifications below when checking this part for your BOM.

Headers, Receptacles, Female Sockets specifications for A79023-001

Description：NANO 36 SKT FEMALE PCB W/ 4 GUID
Series：Nano Strip
Mfr：Omnetics
Package：Case
Connector Type：Receptacle
Contact Type：Female Socket
Style：Board to Board
Number of Positions：36
Number of Positions Loaded：All
Pitch - Mating：0.025" (0.64mm)
Number of Rows：2
Row Spacing - Mating：0.030" (0.76mm)
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：50.0µin (1.27µm)
Insulation Color：Natural
Insulation Height：0.070" (1.78mm)
Contact Length - Post：0.100" (2.54mm)
Operating Temperature：-55°C ~ 125°C
Material Flammability Rating：-
Contact Finish - Post：Tin-Lead
Mated Stacking Heights：-
Ingress Protection：-
Features：Guide Pin
Current Rating (Amps)：1A per Contact
Voltage Rating：-

Headers, Receptacles, Female Sockets datasheet and documents for A79023-001

A79023-001

Headers, Receptacles, Female Sockets Overview

The Omnetics A79023-001 is a Nano Strip series receptacle connector featuring 36 positions in a dual-row configuration. It utilizes a 0.025 inch (0.64mm) mating pitch and 0.030 inch (0.76mm) row spacing. Designed for through-hole termination, the unit incorporates female socket contacts with gold plating to ensure reliable signal transmission. The connector operates within a temperature range of -55°C to 125°C and supports a rated current of 1A per contact.

Headers, Receptacles, Female Sockets Feature Summary

Precision dual-row layout optimized for high-density board-to-board interconnects
Robust push-pull locking mechanism ensures secure mechanical engagement
Guiding pins facilitate accurate alignment during mating cycles

Headers, Receptacles, Female Sockets Applications

Neuroscience research instrumentation
High-density electronic assemblies
Precision measurement equipment

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix designation against official Omnetics documentation to confirm exact pin count and guide pin configuration. Ensure compatibility with mating header components regarding thermal resistance and current ratings. Confirm that the through-hole footprint matches the target PCB design specifications prior to procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component for applications requiring precise alignment and high-density connections. The Nano Strip series offers consistent performance in demanding environments. Evaluate the need for guiding features to prevent misalignment. Consider the operating temperature range and current capacity relative to the system requirements.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Nano Strip family, known for precision engineering in specialized fields. The series provides reliable interconnect solutions for complex electronic systems. Components are designed to meet rigorous standards for durability and signal integrity in critical applications.
