A79024-001

Headers, Male Pins Overview

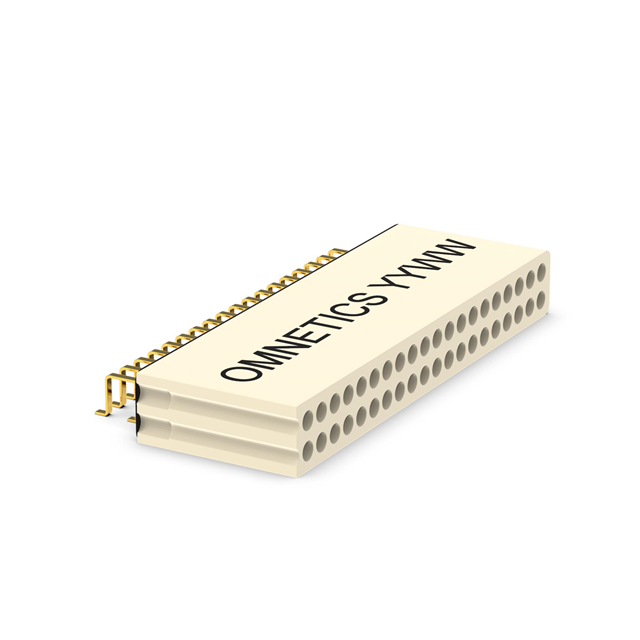

The Omnetics A79024-001 is a surface mount header connector from the Nano Strip series, designed for board-to-cable or wire applications. It features a dual-row configuration with 36 male pin contacts arranged in a 2x18 layout. The connector utilizes a precise 0.025-inch (0.64 mm) pitch between contacts and a 0.030-inch (0.76 mm) row spacing. Constructed with copper beryllium alloy contacts featuring 50.0 µin (1.27 µm) gold plating for mating surfaces, it ensures reliable signal transmission. The housing is made of natural thermoplastic insulation, providing an insulated height of 0.173 inches (4.40 mm). Designed for push-pull retention, the unit includes four guide posts to facilitate accurate alignment during assembly. Rated for 1A per contact, it operates within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Dual-row male header configuration with 36 positions for high-density interconnects
• Precision 0.025 inch pitch with integrated guide posts for accurate alignment
• Surface mount termination style optimized for automated PCB assembly processes

Headers, Male Pins Applications

• Neuroscience research instrumentation requiring precision micro-connectors
• High-density electronic assemblies demanding small form factor headers
• Board-to-cable interconnections in compact industrial equipment

Headers, Male Pins Procurement Notes

Verify the specific part number against official Omnetics documentation to confirm mechanical dimensions and contact configurations. Ensure compatibility with mating female connectors regarding pitch and retention mechanisms. Check current RoHS compliance status and lead times directly with authorized distributors, as manufacturing specifications may be updated without prior notice. Confirm that the surface mount footprint matches the design requirements.

Headers, Male Pins Selection Notes

Select this component when a high-density, dual-row male header is required for surface mount applications. The 0.025-inch pitch allows for significant I/O density in limited board space. Consider the inclusion of guide posts if precise alignment is critical for the mating process. Evaluate the thermal operating range and current rating against the specific circuit demands to ensure long-term reliability under operational conditions.

Headers, Male Pins Part Context

This connector belongs to the Nano Strip series by Omnetics, a line of miniature connectors engineered for high-performance applications. The series is widely recognized in scientific and medical fields, particularly for driving neuroscience research where precision and reliability are paramount. The A79024-001 variant specifically addresses needs for higher pin counts in a compact dual-row format.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available.
