A79025-001

Headers, Receptacles, Female Sockets Overview

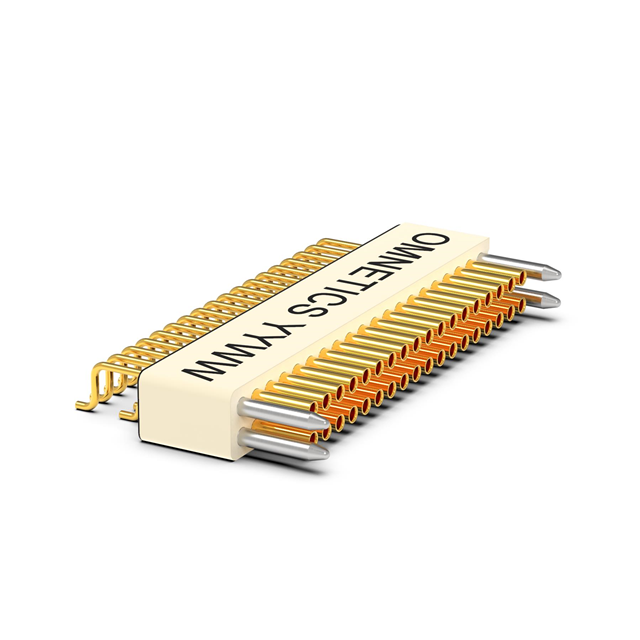

The Omnetics A79025-001 is a dual-row male Nano Strip connector designed for surface mount technology. It features 36 positions with a 0.025-inch (0.64mm) mating pitch and 0.030-inch (0.76mm) row spacing. The component utilizes push-pull retention, gold-plated contacts, and includes four guide posts for precise alignment. Rated at 1A per contact, it operates within a temperature range of -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Dual-row male configuration with integrated guide posts
• Surface mount termination with push-pull locking mechanism
• Gold-plated contacts for reliable signal transmission

Headers, Receptacles, Female Sockets Applications

• Neuroscience research instrumentation
• High-density board-to-cable interconnects
• Precision data acquisition systems

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific revision status and lead times directly with the manufacturer or authorized distributors before procurement. Confirm that the surface mount footprint matches the design specifications. Ensure compatibility with mating female connectors in the Nano Strip series. Check for any updated environmental compliance documentation required for the target application region.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when high-density interconnection is required in a compact surface-mount form factor. The inclusion of guide posts ensures accurate alignment during assembly, which is critical for precision applications. Consider the thermal operating range and current rating to ensure suitability for the intended electrical environment and mechanical constraints.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Nano Strip series by Omnetics, known for precision connectors used in demanding fields like neuroscience. The series offers various configurations, but this specific model provides a 36-position dual-row layout optimized for surface mounting, balancing density with reliable mechanical retention.

Headers, Receptacles, Female Sockets Replacement Considerations

Compatible substitutes include other 36-position dual-row male Nano Strip connectors from Omnetics, such as the A79010-001 if fewer positions are acceptable, provided the pinout and mechanical dimensions align with the design requirements.
