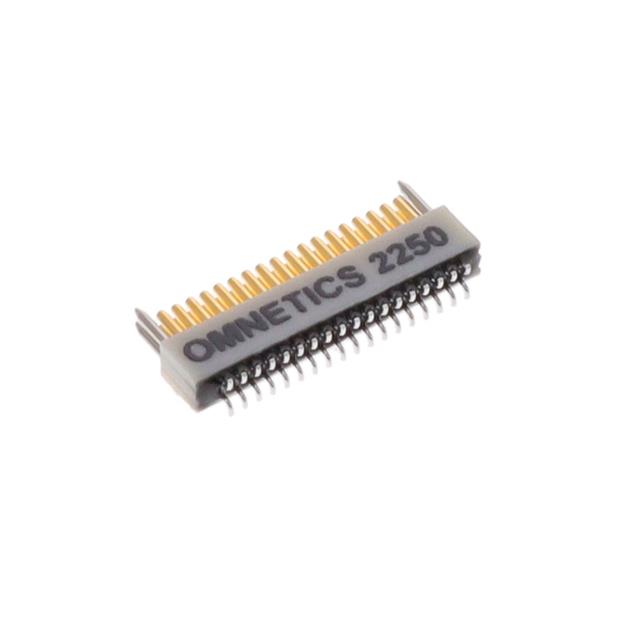

A79027-001 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Omnetics. Its product description is NANO 36 SKT FEMALE SMT W/ 4 GUID. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for A79027-001
- Description：NANO 36 SKT FEMALE SMT W/ 4 GUID
- Series：Nano Strip
- Mfr：Omnetics
- Package：Case
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：36
- Number of Positions Loaded：All
- Pitch - Mating：0.025" (0.64mm)
- Number of Rows：2
- Row Spacing - Mating：0.030" (0.76mm)
- Mounting Type：Surface Mount
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：50.0µin (1.27µm)
- Insulation Color：Natural
- Insulation Height：0.070" (1.78mm)
- Contact Length - Post：-
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：-
- Contact Finish - Post：Tin-Lead
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：Guide Pin
- Current Rating (Amps)：1A per Contact
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for A79027-001
Headers, Receptacles, Female Sockets Overview
The A79027-001 is a dual row Nano Strip receptacle connector manufactured by Omnetics. It features 36 positions with a 0.025-inch (0.64mm) pitch and utilizes gold-plated Flex Pin contacts. Designed for surface mount installation, the component includes four guide posts for precise alignment during assembly. The connector operates within a temperature range of -55°C to +125°C and meets MIL-DTL-32139 reliability standards.
Headers, Receptacles, Female Sockets Feature Summary
- Dual row configuration with 36 female socket contacts
- Gold-plated Flex Pin contact system for high reliability
- Integrated four guide posts for accurate surface mount alignment
Headers, Receptacles, Female Sockets Applications
- Neuroscience research instrumentation
- Precision medical devices
- High-density electronic interconnects
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific part number against official Omnetics documentation to confirm compatibility with required PCB layouts and mating connectors. Ensure that the surface mount footprint matches the design specifications. Confirm environmental compliance status and moisture sensitivity levels prior to integration into production workflows.
Headers, Receptacles, Female Sockets Selection Notes
Select this component when a high-density, reliable dual-row interface is required for surface mount applications. The inclusion of guide posts facilitates automated assembly processes. Consider the operating temperature range and contact plating requirements to ensure suitability for the intended operational environment and mating hardware.
Headers, Receptacles, Female Sockets Part Context
This component belongs to the Nano Strip series, which provides precision interconnect solutions. The series is characterized by its small form factor and robust performance in demanding environments. The A79027-001 specifically offers a 36-position receptacle option within this lineup.
Headers, Receptacles, Female Sockets Replacement Considerations
Consult official Omnetics documentation for confirmed substitute part numbers. Verify mechanical dimensions and electrical characteristics before considering alternative components.
