A79042-001

Headers, Male Pins Overview

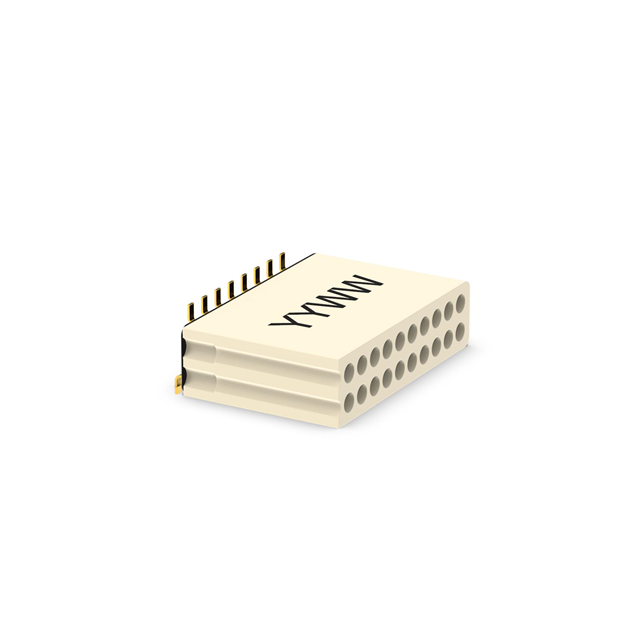

The Omnetics A79042-001 is a Nano Strip series connector header featuring 18 positions in a dual-row configuration. It utilizes surface mount termination with a 0.025 inch (0.64mm) mating pitch and 0.030 inch (0.76mm) row spacing. The contacts are male pins with gold plating, housed in a natural thermoplastic insulator. Rated for 1A per contact, it operates within a temperature range of -55°C to 125°C and includes guide holes for alignment.

Headers, Male Pins Feature Summary

• Employs a highly reliable gold-plated Flex Pin contact system conforming to MIL-DTL-32139 requirements.
• Features a push-pull fastening mechanism for secure board-to-cable or board-to-board connections.
• Includes integrated guide holes to ensure precise alignment during the surface mount assembly process.

Headers, Male Pins Applications

• Neuroscience research instrumentation requiring precision interconnects
• High-density electronic assemblies utilizing surface mount technology
• Military and aerospace systems demanding MIL-DTL-32139 compliance

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix matches the required guide hole configuration and contact length. Confirm that the surface mount footprint aligns with the design guidelines provided in the official datasheet. Ensure compatibility with the intended mating connector within the Nano Strip family before finalizing procurement specifications.

Headers, Male Pins Selection Notes

Select this component when a dual-row male header with surface mount termination is required. The 18-position count and 0.025-inch pitch define the density constraints. Consider the Flex Pin technology for applications needing high reliability and low insertion force compared to traditional pin-and-socket designs.

Headers, Male Pins Part Context

This part belongs to the Nano Strip series by Omnetics, designed for high-reliability interconnects. The series is characterized by its small form factor and robust mechanical performance. It serves as a standard solution for dense circuit board connections in specialized industrial and scientific equipment sectors.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available for this specific model. Verify if other variants within the Nano Strip series with identical pin counts and mounting styles can serve as functional alternatives based on mechanical fit and electrical ratings.

Headers, Male Pins FAQ

What is the contact material used in the A79042-001?

The contacts utilize a gold-plated Flex Pin system designed for high reliability and low contact resistance.

Does this connector include guide features?

Yes, the A79042-001 includes guide holes to assist with precise alignment during the surface mount soldering process.
