A79043-001

Headers, Receptacles, Female Sockets Overview

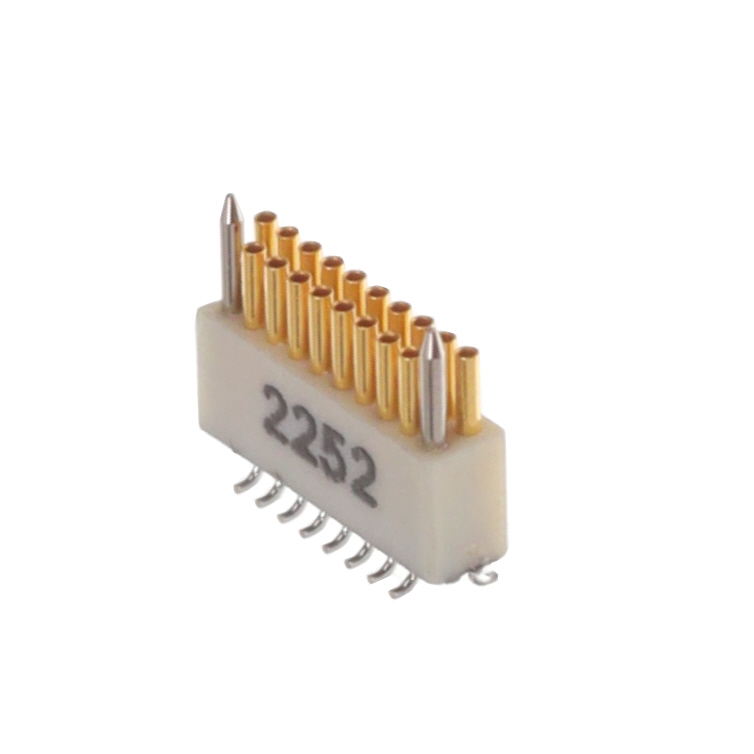

The Omnetics A79043-001 is a 18-position receptacle connector from the Nano Strip series, designed for surface mount right-angle installation. It features a 0.025 inch (0.64mm) mating pitch and dual-row configuration with a 0.030 inch (0.76mm) row spacing. The contacts are female sockets with gold plating, rated at 1A per contact. Operating temperature ranges from -55°C to 125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Right-angle surface mount design for compact PCB integration
• Gold-plated female socket contacts for reliable signal transmission
• Integrated guide pins for precise alignment during mating

Headers, Receptacles, Female Sockets Applications

• Board-to-board interconnections in high-density electronics
• Precision instrumentation and measurement devices
• Neuroscience research equipment requiring stable connections

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against the official Omnetics datasheet to ensure correct orientation and pinout compatibility. Confirm that the right-angle surface mount form factor matches the target PCB layout constraints. Check for any updated revision notes regarding material specifications or environmental compliance status before finalizing procurement orders.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a low-profile, right-angle connection is required for board-to-board applications. Ensure the mating counterpart is a compatible male header from the same Nano Strip series. Validate that the 1A current rating per contact meets the circuit requirements and that the operating temperature range covers the intended environment.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the Nano Strip series by Omnetics, known for precision connectors used in demanding applications. The series offers various configurations including vertical and right-angle options. The A79043-001 specifically addresses needs for robust, aligned connections in space-constrained designs.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes within the same family include other right-angle receptacles with matching pin counts and pitch. Verify mechanical dimensions and guide pin placement to ensure interchangeability without modifying the PCB footprint.
