A79047-001

Headers, Receptacles, Female Sockets Overview

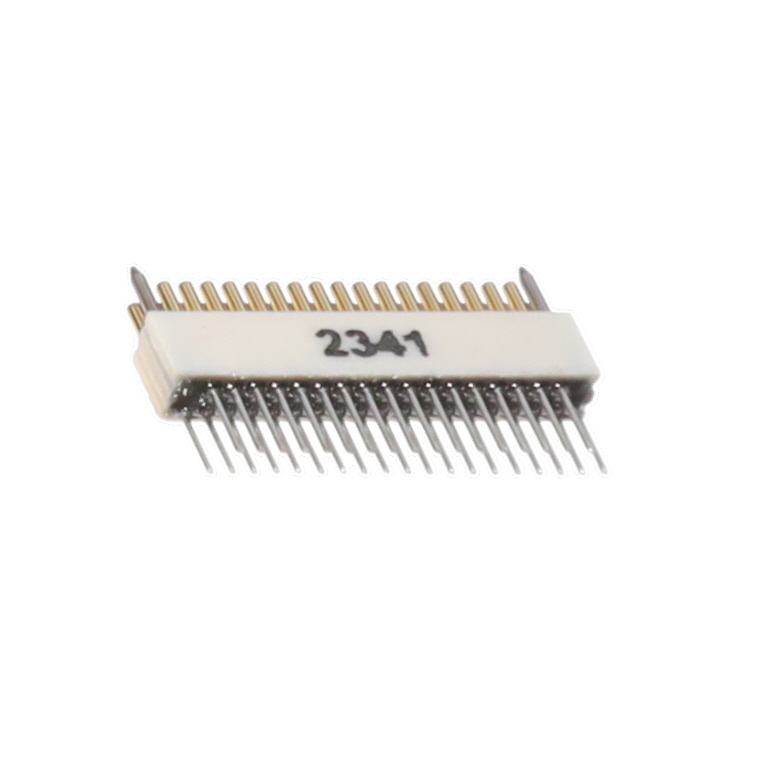

The Omnetics A79047-001 is a 36-position female receptacle connector from the Nano Strip series, designed for through-hole mounting. It features a 0.025-inch (0.64mm) contact spacing and dual-row configuration with a 0.030-inch row pitch. The contacts are gold-plated copper alloy pins rated at 1A per contact, operating within a temperature range of -55°C to 125°C. The housing is made of natural thermoplastic polymer, providing insulation height of 0.130 inches. This component utilizes a push-pull latching mechanism for secure mating and includes guide pins for alignment.

Headers, Receptacles, Female Sockets Feature Summary

• Push-pull latching mechanism ensures secure connection retention
• Gold-plated contacts provide reliable signal transmission
• Integrated guide pins facilitate precise board alignment
• Thermoplastic housing offers environmental protection

Headers, Receptacles, Female Sockets Applications

• High-density electronic interconnects
• Space-constrained circuit board assemblies
• Precision instrumentation connections
• Neuroscience research equipment interfaces

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix requirements against the official Omnetics datasheet to ensure compatibility with mating connectors and PCB layout constraints. Confirm that the through-hole footprint matches the design specifications. Check for RoHS compliance status if required by project regulations. Ensure proper handling procedures are followed due to the miniature nature of the components. Validate lead times with authorized distributors as manufacturing schedules may vary.

Headers, Receptacles, Female Sockets Selection Notes

Select this part when a high-density, ruggedized rectangular connector is required for through-hole applications. Consider the 0.025-inch spacing for tight pitch requirements. Evaluate the push-pull latching system for ease of use in dense arrays. Compare against other Nano Strip variants for pin count and orientation needs. Ensure the thermal and current ratings meet the system's operational demands.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the Nano Strip series, known for precision engineering in miniature connector designs. Omnetics manufactures these connectors in the United States, emphasizing quality control and reliability. The series is widely used in demanding environments where space and performance are critical factors.

Headers, Receptacles, Female Sockets Replacement Considerations

Check for direct equivalents within the same Nano Strip family with matching pin counts and latching mechanisms. Verify dimensional compatibility before substituting. Consult official cross-reference lists for approved alternatives.
