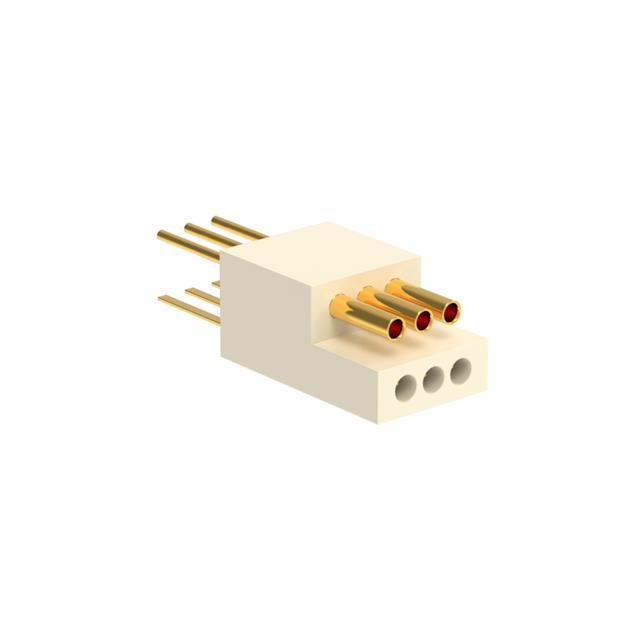

A79609-001 is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Omnetics. Its product description is NANO 6POS MALE/FEMALE POLARIZED. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for A79609-001
- Description：NANO 6POS MALE/FEMALE POLARIZED
- Series：Polarized Nano
- Mfr：Omnetics
- Package：Bag
- Connector Type：Header
- Contact Type：Female Socket; Male Pin
- Pitch - Mating：0.025" (0.64mm)
- Number of Positions：6
- Number of Rows：2
- Row Spacing - Mating：0.040" (1.02mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：-
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.060" (1.52mm)
- Contact Length - Post：0.100" (2.54mm)
- Overall Contact Length：-
- Insulation Height：0.170" (4.32mm)
- Contact Shape：Circular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：50.0µin (1.27µm)
- Contact Finish - Post：Tin-Lead
- Contact Material：Beryllium Copper
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：-
- Insulation Color：Natural
- Current Rating (Amps)：1A per Contact
- Voltage Rating：-
Headers, Male Pins datasheet and documents for A79609-001
Headers, Male Pins Overview
The Omnetics A79609-001 is a Nano Polarized series connector header designed for surface mount or through-hole applications. It features a 6-position configuration with two rows, offering a 0.025 inch (0.64mm) pitch. The unit utilizes male and female polarized contacts to ensure correct mating alignment. Rated for 1A per contact, it operates within a temperature range of -55°C to 125°C. The housing is made of natural thermoplastic, and the contacts are gold-plated for reliable signal transmission.
Headers, Male Pins Feature Summary
- Polarized design prevents incorrect mating orientation
- Gold-plated contacts ensure reliable electrical connection
- Thermoplastic insulation provides durability in harsh environments
Headers, Male Pins Applications
- Precision interconnects in aerospace systems
- Medical device circuitry connections
- Neuroscience research instrumentation
Headers, Male Pins Procurement Notes
Verify the specific termination style required for your PCB layout, as this component is available in both surface mount and through-hole variants within the same part number family. Confirm that the polarized keying matches your mating connector requirements. Ensure the operating environment stays within the specified thermal limits. Check for any specific handling instructions regarding moisture sensitivity if applicable to your assembly process.
Headers, Male Pins Selection Notes
Select this component when precise alignment is critical due to its polarized structure. Consider the 0.025 inch pitch for high-density board layouts. Evaluate the current rating against your application's power needs. Choose between surface mount or through-hole based on your manufacturing capabilities and mechanical stress requirements.
Headers, Male Pins Part Context
This part belongs to the Nano Polarized (PZN) series by Omnetics, known for precision connectors used in demanding fields like neuroscience research. It complements other Nano Strip components but offers unique polarizing features for enhanced reliability in sensitive electronic assemblies.
