A79614-001

Headers, Male Pins Overview

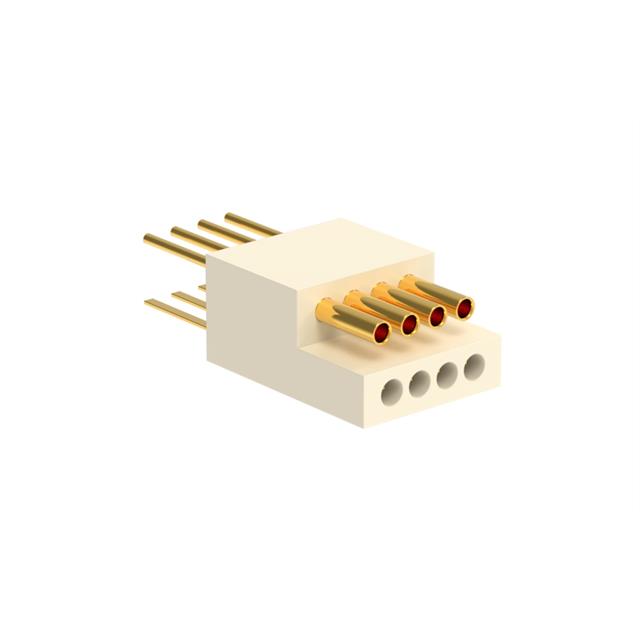

The Omnetics A79614-001 is a Polarized Nano Series rectangular connector header designed for through-hole mounting. It features an 8-position configuration with mixed male and female contacts to ensure correct mating orientation. The connector utilizes a 0.025-inch (0.64mm) contact spacing and a 0.040-inch (1.02mm) row pitch. Contacts are constructed from platinum-copper alloy with a gold plating thickness of 50.0 microinches (1.27 micrometers). The unit operates within a temperature range of -55°C to 125°C and supports a rated current of 1A per contact.

Headers, Male Pins Feature Summary

• Polarized design prevents incorrect mating alignment
• Mixed male and female contact arrangement
• Through-hole termination method
• Gold-plated circular contacts

Headers, Male Pins Applications

• Board-to-board interconnections
• Precision instrumentation modules
• Neuroscience research equipment
• Compact electronic assemblies

Headers, Male Pins Procurement Notes

Verify the specific part number against official Omnetics documentation to confirm compatibility with mating connectors. Ensure that the polarized keying requirements match the system design constraints. Confirm that the through-hole mounting specifications align with the printed circuit board layout. Cross-reference the contact gender configuration to guarantee proper electrical interface functionality.

Headers, Male Pins Selection Notes

Select this component when a polarized, mixed-gender header is required for reliable board-to-board connections. The Polarized Nano series offers high-density routing with precise alignment features. Consider the through-hole installation method and the specific contact spacing requirements. Evaluate the thermal and current ratings against the application's operational demands.

Headers, Male Pins Part Context

This component belongs to the Polarized Nano (PZN) series by Omnetics Connector Corp. The series is characterized by precision engineering for demanding applications. It provides reliable interconnect solutions with strict polarization controls. The product line supports various configurations for compact electronic systems.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify direct replacements only through official Omnetics channels or authorized distributors.
