A79623-001

Headers, Male Pins Overview

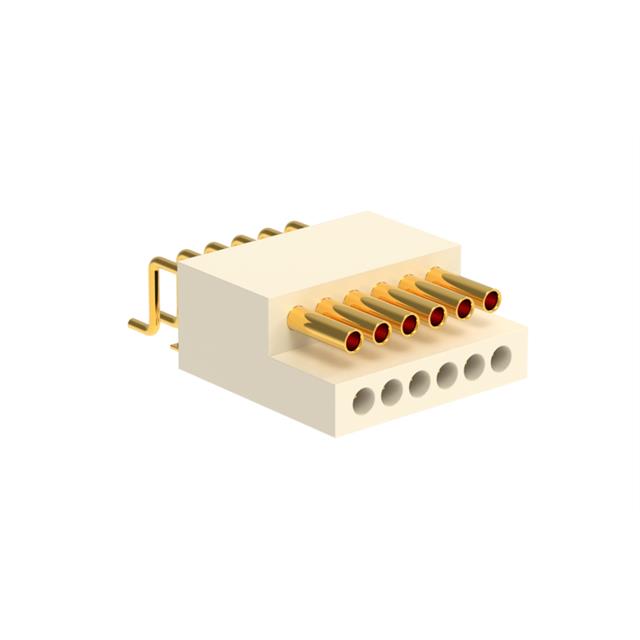

The A79623-001 is a Polarized Nano connector header from Omnetics, designed for surface mount applications. It features a right-angle configuration with 12 positions arranged in two rows. The mating pitch is 0.025 inches (0.64 mm), and the row spacing is 0.040 inches (1.02 mm). The connector utilizes mixed contact types, including female sockets and male pins, with circular contact shapes. Mating contact length is 0.060 inches (1.52 mm), and insulation height is 0.080 inches (2.03 mm). Rated current is 1A per contact, operating within a temperature range of -55°C to 125°C.

Headers, Male Pins Feature Summary

• Polarized design prevents incorrect mating alignment
• Right-angle surface mount termination for space-constrained layouts
• Mixed contact configuration supports diverse interconnect needs

Headers, Male Pins Applications

• Neuroscience research instrumentation
• Precision medical devices
• High-density board-to-board connections

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized Omnetics distributors or direct manufacturer channels. Confirm that the received part matches the specific A79623-001 designation, noting its discontinued status but potential remaining stock availability. Ensure handling procedures comply with electrostatic discharge protocols during installation to maintain connector integrity and performance reliability.

Headers, Male Pins Selection Notes

Select this model when high-density interconnectivity is required in compact electronic assemblies. The right-angle surface mount style facilitates efficient PCB routing in constrained spaces. Verify compatibility with mating components requiring polarized nano series connectors. Consider the mixed contact arrangement if both socket and pin interfaces are necessary within a single header unit for system integration flexibility.

Headers, Male Pins Part Context

This component belongs to the Polarized Nano (PZN) series by Omnetics, engineered for precision applications. The series emphasizes miniaturization while maintaining reliable electrical connections. The A79623-001 variant specifically offers a right-angle form factor, distinguishing it from horizontal counterparts like the A79622-001. This series is often utilized in fields demanding high connector density and precise alignment capabilities.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. As the A79623-001 is listed as discontinued, alternative sourcing may require consulting Omnetics directly for current equivalent recommendations or evaluating compatible parts from the same Polarized Nano family with matching mechanical specifications.
