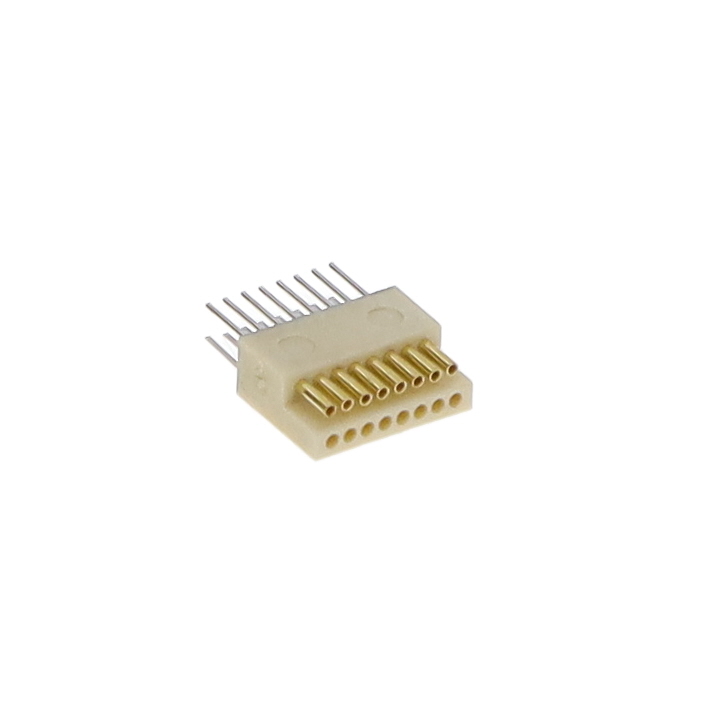

A79634-001 is listed in the Headers, Receptacles, Female Sockets range at ChipApex. The manufacturer field lists Omnetics. Its product description is POLARIZED NANO CONNECTOR. Review the specifications below when checking this part for your BOM.
Headers, Receptacles, Female Sockets specifications for A79634-001
- Description：POLARIZED NANO CONNECTOR
- Series：Polarized Nano
- Mfr：Omnetics
- Package：Case
- Connector Type：Receptacle
- Contact Type：Female Socket
- Style：Board to Board
- Number of Positions：16
- Number of Positions Loaded：All
- Pitch - Mating：0.025" (0.64mm)
- Number of Rows：2
- Row Spacing - Mating：0.040" (1.02mm)
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：50.0µin (1.27µm)
- Insulation Color：Natural
- Insulation Height：0.080" (2.03mm)
- Contact Length - Post：0.100" (2.54mm)
- Operating Temperature：-55°C ~ 125°C
- Material Flammability Rating：-
- Contact Finish - Post：Tin-Lead
- Mated Stacking Heights：-
- Ingress Protection：-
- Features：-
- Current Rating (Amps)：1A per Contact
- Voltage Rating：-
Headers, Receptacles, Female Sockets datasheet and documents for A79634-001
Headers, Receptacles, Female Sockets Overview
The Omnetics A79634-001 is a Polarized Nano connector header featuring 16 positions in a single row. It utilizes through-hole straight termination with a 0.025-inch (0.64mm) mating pitch and 0.040-inch (1.02mm) row spacing. The connector employs push-pull fastening, gold-plated circular contacts, and thermoplastic insulation. Rated for 1A per contact, it operates within a temperature range of -55°C to 125°C.
Headers, Receptacles, Female Sockets Feature Summary
- Polarized design ensures correct alignment during mating
- Push-pull fastening mechanism provides secure connection
- Gold-plated circular contacts ensure reliable conductivity
Headers, Receptacles, Female Sockets Applications
- Precision interconnects in aerospace systems
- High-density board-to-board connections
- Neuroscience research instrumentation
- Compact electronic device assemblies
Headers, Receptacles, Female Sockets Procurement Notes
Verify the specific part number against official Omnetics documentation to confirm pin count and termination style. Ensure compatibility with mating connectors regarding polarization keys and push-pull mechanisms. Check environmental ratings for intended operating temperatures.
Headers, Receptacles, Female Sockets Selection Notes
Select this component for applications requiring high-density interconnects with precise alignment. The Polarized Nano series offers robust mechanical retention via push-pull latches. Consider the through-hole mounting requirement and single-row configuration when designing PCB layouts.
Headers, Receptacles, Female Sockets Part Context
This component belongs to the Polarized Nano (PZN) series by Omnetics, designed for precision interconnects. The series is known for driving advanced applications like neuroscience research. It combines small form factors with reliable mechanical and electrical performance.
Headers, Receptacles, Female Sockets Replacement Considerations
Public confirmed substitute part numbers are not available in the provided data. Verify mating compatibility with existing system components before considering alternatives.
