A79638-001

Headers, Receptacles, Female Sockets Overview

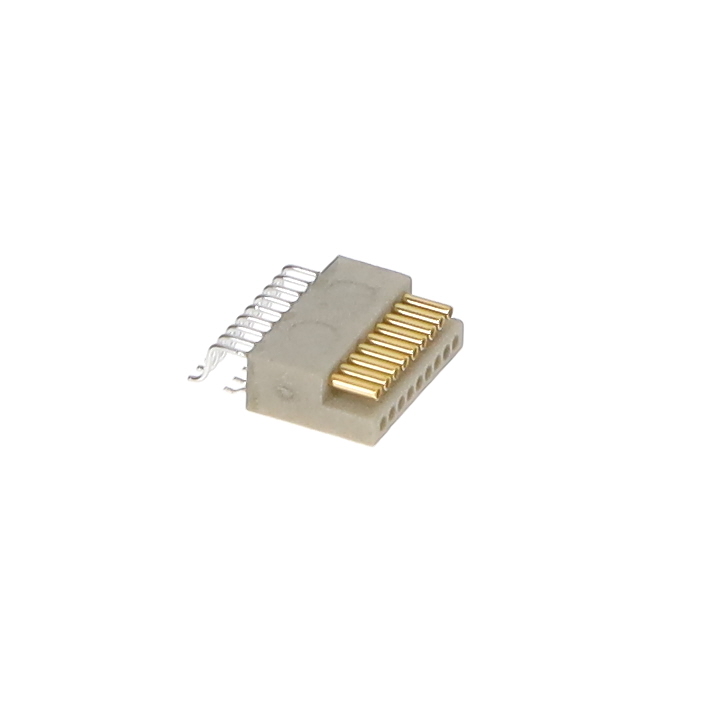

The A79638-001 is a Nano Polarized series connector manufactured by Omnetics. It features an 18-position header with surface mount, right-angle termination. The contact spacing is 0.025 inches (0.64 mm). Contacts are gold-plated with a thickness of 50.0 µin (1.27 µm). The insulation height is 0.080 inches (2.03 mm), and the row spacing is 0.040 inches (1.02 mm). Rated current is 1A per contact. Operating temperature ranges from -55°C to +125°C.

Headers, Receptacles, Female Sockets Feature Summary

• Polarized design prevents misalignment during mating
• Flex-Pin contact system for reliable connection
• Surface mount right-angle termination for PCB integration

Headers, Receptacles, Female Sockets Applications

• Precision interconnects in aerospace systems
• Medical device circuitry connections
• High-reliability industrial control boards

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific suffix codes against official Omnetics documentation to confirm exact pin count, orientation, and plating specifications. Ensure compatibility with mating receptacles within the Nano Polarized family. Confirm surface mount footprint dimensions match the target PCB layout before procurement.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when polarized right-angle surface mount headers are required. The 18-position configuration suits dense board layouts. Verify that the 0.025-inch pitch aligns with existing design constraints. Ensure mating connectors support the 1A current rating and operating temperature range.

Headers, Receptacles, Female Sockets Part Context

Part of the Nano Polarized (PZN) series, designed for high-density applications. Utilizes Omnetics' Flex-Pin technology for durability. Commonly used in environments requiring secure, keyed connections to prevent incorrect insertion. Serves as a male header counterpart to female socket receptacles.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes include other PZN series headers with identical position counts and polarization keys. Verify mechanical footprint compatibility. Cross-reference mating part numbers to ensure electrical and physical alignment.
