A8063-L

Overview

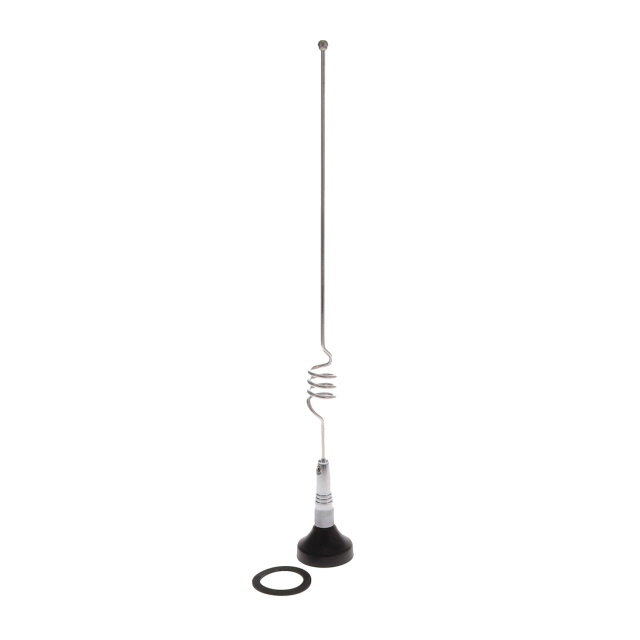

The A8063-L is an RF antenna manufactured by TE Connectivity, operating within the 806 MHz to 896 MHz frequency band. It features a center frequency of 851 MHz and provides a gain of 3 dB. The antenna utilizes an open coil design with an ABS style black base for mounting. It employs an N-type female connector interface. This component is classified under RF antennas and is suitable for wireless signal reception and transmission applications.

Feature Summary

• Open coil construction for efficient signal handling
• Molded ABS style black base for structural support
• N-type female connector interface

Applications

• Wireless signal reception
• Wireless signal transmission
• RF communication systems

Procurement Notes

Verify the specific manufacturing date code and lot number upon receipt to ensure compliance with current RoHS standards. Confirm that the N-type female connector integrity remains intact during transit. Check for any physical damage to the ABS base or open coil structure before installation in critical RF environments.

Selection Notes

Select this model when a 3 dB gain antenna is required for the 806-896 MHz band. The N-type female connector dictates mating cable requirements. Ensure the mounting environment accommodates the ABS base style. Consider that the mount base may need to be ordered separately depending on system integration needs.

Part Context

This part belongs to the A8063 series of RF antennas from TE Connectivity. It is distinct from other variants like the AB8063C which may offer different gain levels or connector types. The A8063-L specifically denotes the 3 dB gain version with the ABS style base configuration.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing N-type connectors if considering alternative brands.
