A84XM4018FTCG

Overview

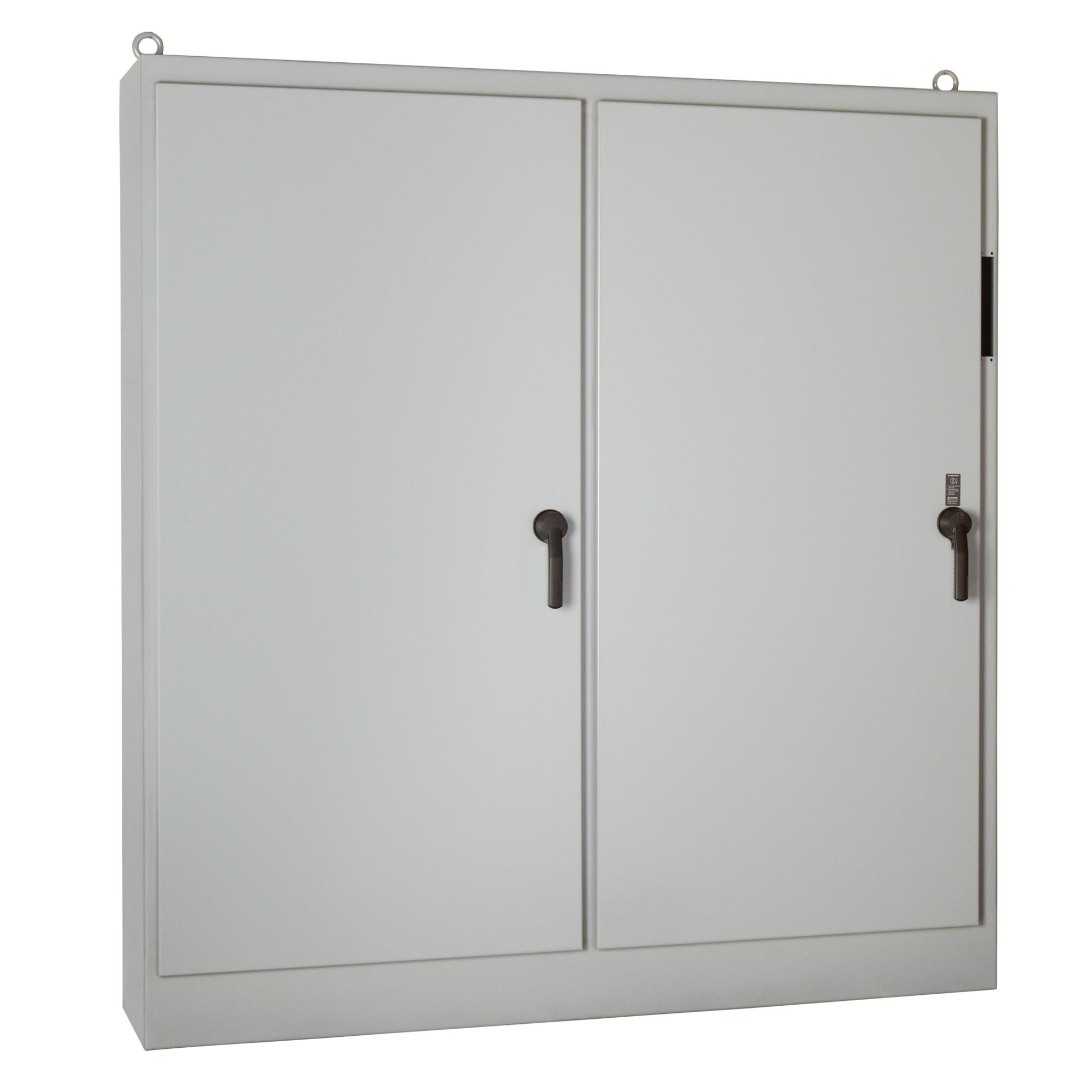

The A84XM4018FTCG is a heavy-duty, free-standing disconnect enclosure manufactured by Hoffman Enclosures, Inc. Constructed from gray steel, it features continuously welded seams for structural integrity and durability. The unit measures 84.12 inches in height, 40.25 inches in width, and 18.12 inches in depth. It is designed to house circuit breakers or disconnect switches and includes body stiffeners, lifting eyes, and panel supports. The enclosure meets Type 12 standards, providing protection against dust, dripping non-corrosive liquids, and oil splashing.

Feature Summary

• Features continuously welded seams for enhanced structural strength and environmental sealing.
• Includes body stiffeners and panel supports to maintain rigidity and accommodate internal components.
• Equipped with lifting eyes to facilitate safe installation and positioning of the heavy-duty unit.

Applications

• Housing circuit breakers in industrial power distribution systems
• Enclosing disconnect switches for machinery control panels
• Heavy-duty electrical protection in manufacturing environments

Procurement Notes

Verify that the specific application requires a free-standing configuration rather than wall-mount. Confirm that the internal component layout aligns with the provided panel support structure. Ensure site conditions match the Type 12 rating requirements regarding oil and dust exposure. Check that the physical footprint fits the designated installation area.

Selection Notes

Select this model when high mechanical strength is required due to its welded seam construction and stiffened body. It is suitable for applications involving heavy circuit breakers or disconnect switches that demand robust mounting solutions. Consider the freestanding design if floor space allows and wall mounting is not feasible or structurally supported.

Part Context

This part belongs to the Hoffman Heavy-Duty Free-Stand Disconnect Enclosure series. These units are engineered for demanding industrial settings where standard enclosures may lack sufficient durability. The series typically offers various dimensions to accommodate different switchgear sizes while maintaining consistent protective ratings and construction quality.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing infrastructure before considering alternative models from other manufacturers.
