A86M3ELP

Overview

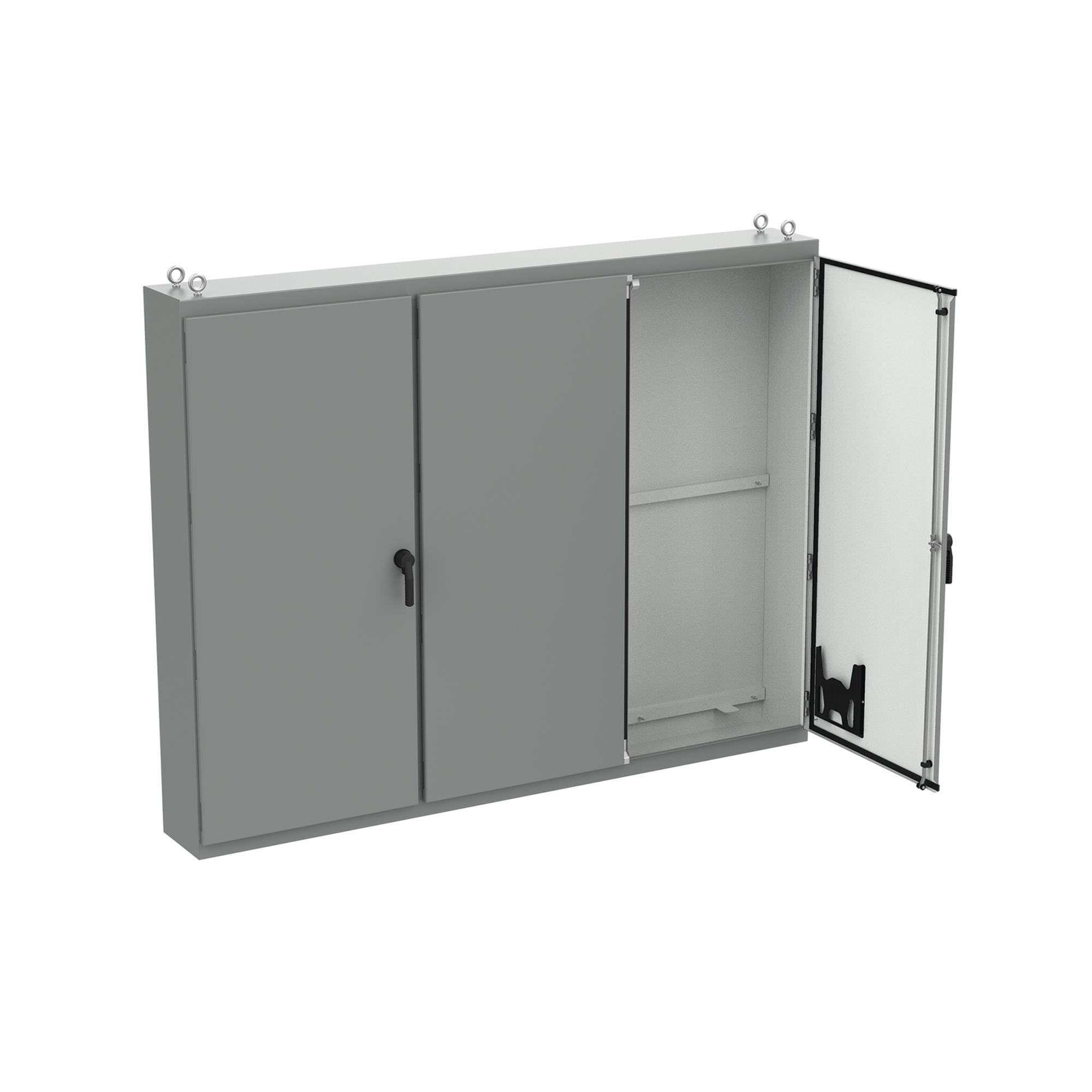

The Hoffman A86M3ELP is a free-standing, multi-door industrial enclosure manufactured by nVent Hoffman. Constructed from mild steel with a polyester painted finish, it features an ANSI 61 gray exterior and white interior. The unit provides NEMA Type 12 and IP55 protection ratings, ensuring resistance to dust, dripping non-corrosive liquids, and oil seepage. It measures 86.12 inches in length, 112 inches in width, and 14.12 inches in depth. This model includes three doors but is supplied without a panel.

Feature Summary

• Multi-door configuration with three separate access points for equipment installation
• NEMA Type 12 and IP55 rated construction for indoor industrial environments
• Free-standing design suitable for floor mounting applications
• Steel material with durable polyester paint finish

Applications

• Industrial control panel housing
• Electrical equipment protection in manufacturing facilities
• Automation system component enclosures
• Machine tool electrical cabinet integration

Procurement Notes

Verify the specific ordering suffix against official nVent documentation to confirm exact dimensional tolerances and finish specifications. Ensure that the required panel accessories are ordered separately as this enclosure is supplied without a panel. Confirm compatibility with intended mounting hardware and internal component layouts prior to purchase.

Selection Notes

Select this model when high-capacity storage and multiple access points are required for large-scale industrial control systems. The NEMA Type 12 rating makes it suitable for environments where dust and liquid ingress protection is necessary. Consider the free-standing footprint and weight capacity during facility planning.

Part Context

This part belongs to the Hoffman series of free-standing industrial enclosures designed for heavy-duty applications. It represents a standard configuration within the product line, offering robust steel construction and standardized NEMA ratings for general industrial use cases requiring significant internal volume.

Replacement Considerations

Consult official nVent cross-reference lists for compatible substitutes. Verify dimensional equivalence and door configuration requirements before replacing existing units to ensure seamless integration into current infrastructure.
