A9002137

Overview

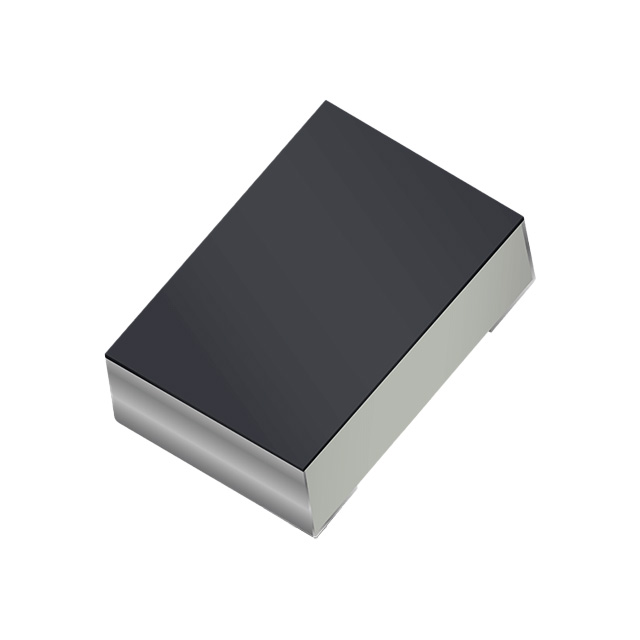

The A9002137 is a surface-mount GNSS antenna manufactured by KYOCERA AVX. It supports BeiDou, Galileo, GLONASS, and GPS systems. The component operates across L1, L2, and L6 frequency bands. It is designed for automotive applications requiring ultra-compact form factors.

Feature Summary

• Supports multi-constellation GNSS including BeiDou, Galileo, GLONASS, and GPS
• Operates on L1, L2, and L6 signal bands
• Ultra-small surface-mount package design

Applications

• Automotive navigation systems
• Telematics units
• GNSS tracking devices

Procurement Notes

Verify the specific datasheet version and mechanical dimensions prior to integration. Confirm that the L1/L2/L6 band support aligns with regional regulatory requirements. Ensure the surface-mount footprint matches the target PCB layout constraints for reliable assembly.

Selection Notes

Select this component when a compact, multi-band GNSS solution is required for automotive environments. Consider the physical size limitations of the enclosure. Evaluate the need for simultaneous L1, L2, and L6 reception capabilities versus single-band alternatives.

Part Context

This part belongs to KYOCERA AVX's automotive-grade antenna portfolio. It addresses the demand for miniaturized components in modern vehicle electronics. The series focuses on providing high-performance positioning within restricted spatial areas.

Replacement Considerations

No public substitute part numbers are confirmed in available documentation.
