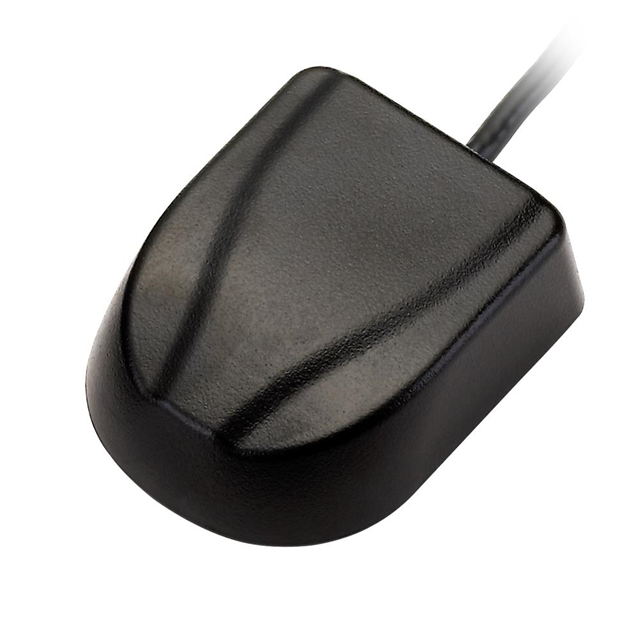

AA.105.301111

$12.56

Description：RF ANT 1.575GHZ MOD SMA MALE MAG
Series：Titan
Mfr：Taoglas Limited
Package：Bag

SKU:be1db5a4186e Category: RF Antennas Brand: Taoglas Limited

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：RF ANT 1.575GHZ MOD SMA MALE MAG
Series：Titan
Mfr：Taoglas Limited
Package：Bag
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz
Frequency Range：1.57GHz ~ 1.58GHz
Antenna Type：Module
Number of Bands：1
VSWR：1.92
Return Loss：-
Gain：2dBic
Features：Cable - 3m, LNA
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Magnetic
Height (Max)：0.551" (14.00mm)
Applications：GPS
Power - Max：-

Download product information

AA.105.301111

Overview

The AA.105.301111 is a magnetic mount GPS/GALILEO active antenna by Taoglas Limited, operating at 1.57542GHz with a frequency range of 1570.42MHz to 1580.42MHz. It features an SMA male connector and a 3-meter RG-174 cable. The unit measures 14mm in length and supports BEIDOU, Galileo, and GPS protocols.

Feature Summary

Active antenna design for satellite navigation
Magnetic mounting for vehicle installation
Integrated 3-meter RG-174 cable with SMA male connector

Applications

GPS tracking systems
Fleet management units
Navigation devices

Procurement Notes

Verify the specific manufacturer lead time, as sources indicate variations between 16 and 18 weeks. Confirm RoHS compliance status and ensure the SMA male interface matches the receiving equipment requirements before finalizing procurement orders.

Selection Notes

Select this model for applications requiring dedicated GPS and GALILEO support with integrated cabling. The magnetic base simplifies temporary or semi-permanent vehicle mounting. Ensure the 3-meter cable length accommodates the device placement relative to the roof.

Part Context

This component belongs to the Titan AA.105 series of active antennas designed for automotive and mobile applications. It provides reliable signal reception for global navigation satellite systems through a compact, magnetically attached form factor suitable for various vehicle types.
