AA.105.301621

Overview

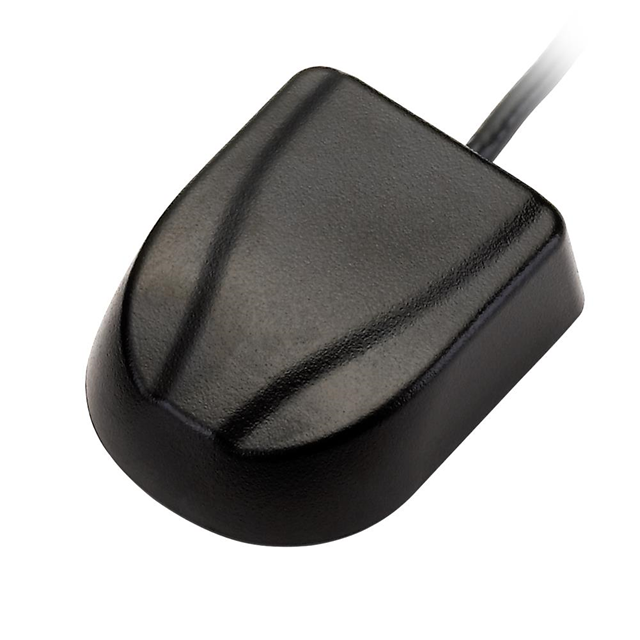

The AA.105.301621 is a magnetic mount active GPS/Galileo antenna from Taoglas Limited, designed for vehicle applications. It operates at a center frequency of 1.57542 GHz with a minimum frequency of 1.57242 GHz and a maximum frequency of 1.57842 GHz. The antenna provides a gain of 2 dBi using right-hand circular polarization. It features an SMB connector and includes an integrated Low Noise Amplifier (LNA). The unit supports GPS and GLONASS protocols and meets RoHS3 standards.

Feature Summary

• Supports GPS and Galileo satellite navigation systems
• Integrated Low Noise Amplifier (LNA) for signal enhancement
• Magnetic mounting design for easy vehicle installation

Applications

• GPS tracking devices
• Vehicle telematics systems
• Fleet management solutions

Procurement Notes

Verify the specific connector type and cable length requirements against the official datasheet before ordering. Confirm that the SMB interface matches the host device input. Ensure the operating voltage range aligns with the system power supply to avoid LNA malfunction. Check for any recent product change notices regarding component updates.

Selection Notes

Select this model when a compact, magnetically mounted solution is required for GNSS positioning in mobile environments. It is suitable for applications needing reliable GPS and Galileo reception without external mounting hardware. Consider the integrated LNA for improved sensitivity in challenging signal conditions compared to passive alternatives.

Part Context

This component belongs to the Titan AA.105 Series by Taoglas Limited, which specializes in RF antennas for industrial and automotive use. The series focuses on providing robust connectivity for navigation and communication systems. The AA.105.301621 specifically targets global navigation satellite system integration in vehicles.

Replacement Considerations

No public confirmed substitute part numbers are available for this discontinued or specific variant.
