AA.107.301111

Antennas RF Overview

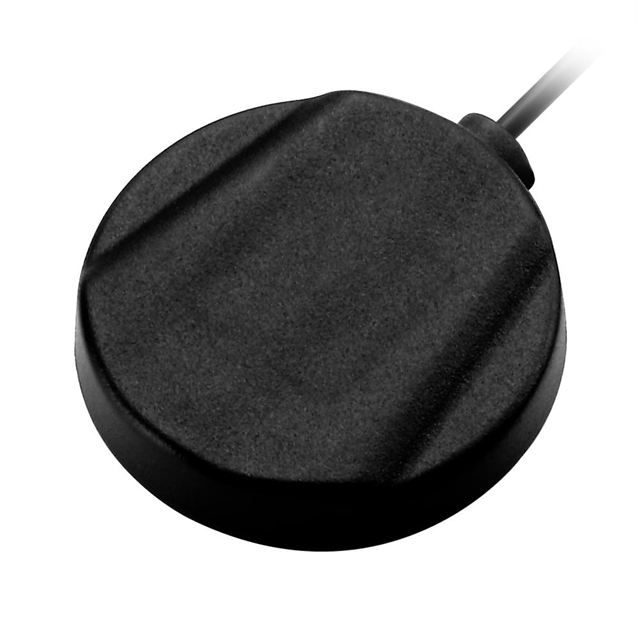

The Taoglas AA.107.301111 is a Stingray series GNSS module antenna designed for high-precision positioning. It operates at 1.575GHz and 1.6GHz, supporting GPS, GLONASS, Galileo, and Beidou constellations. The unit features an active design with a 3m cable length and SMA male connector. It utilizes adhesive mounting and achieves an IP65 ingress protection rating. The antenna height is 10.8mm, ensuring low-profile integration for mobile and fixed applications requiring robust satellite signal reception.

Antennas RF Feature Summary

• Supports multi-constellation GNSS including GPS, GLONASS, Galileo, and Beidou
• Active antenna design with integrated Low Noise Amplifier
• Low profile adhesive mount construction for secure installation
• IP65 rated enclosure for environmental resistance

Antennas RF Applications

• Mobile asset tracking systems
• Navigation devices requiring high accuracy
• Telematics units in transportation
• Geospatial data collection equipment

Antennas RF Procurement Notes

Verify the specific firmware or hardware revision of the received component against the manufacturer's latest documentation to ensure compatibility with target navigation protocols. Confirm that the SMA male connector orientation matches the receiving device interface. Check for any recent product change notices regarding material composition or performance specifications before finalizing procurement orders.

Antennas RF Selection Notes

Select this model when multi-band GNSS support is required within a constrained vertical space. The adhesive mounting method suits surfaces where drilling is prohibited. Ensure the application environment meets the IP65 rating requirements. Verify that the 3m cable length accommodates the distance between the mounting point and the receiver unit without excessive signal loss.

Antennas RF Part Context

This component belongs to the Stingray family of antennas from Taoglas Limited. The series focuses on low-profile designs suitable for embedded applications. The AA.107 variant specifically targets global navigation satellite system reception. It complements other models in the lineup by offering dedicated GNSS capabilities rather than wideband RF coverage.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for cross-reference information or updated model replacements.
